MTI  |  SKU: CG001015

Graphite Crucible: 2.875"OD x 2"ID x 3.125"DP,162 mL - EQ-G001015-LD

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Graphite Crucible: 2.875"OD x 2"ID x 3.125"DP,162 mL - EQ-G001015-LD

MTI

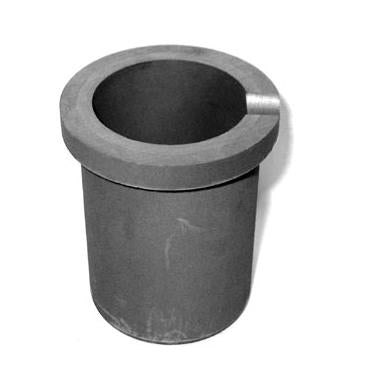

EQ-CB-G001015-LD is a High purity graphite crucible for induction heating and metal melting, Machined graphite crucible. Flat bottom.



Specification:



Part Number  EQ-G001015-LD
Outside Diameter of top edge 2.875" (7.303cm)
Outside Diameter of bottom   2.28" (58 mm)
Inside Diameter 2.03" (5.156cm)
Depth 3.06" (7.772cm)
Height 3.435" (8.725cm)
Capacity 162 mL



PROPERTY  US VALUE METRIC VALUE
Particle Size 0.008 in 0.02032 cm
Density 0.063  lb/in 3 1.74 gr/cm 3
Flexural Strength 3200 psi 22.1 mpa
Compressive Strength 6200 psi 42.7 mpa
Resistivity 4.0 ohm/inx10 -4 4.0 ohm/inx10 -4
Thermal Conductivity 110 BTU/(h.ft 2 0F/ft) 190 W/(m 2 . K/m)
CTE 1.3 in/in 0F x 10 -6 2.4 Microns/m 0C
Temperature (Air) 750 0F 399 0C
Temperature (Inert) 5000 0F 2760 0C
Ash 0.1% 0.1%

MSDS

Inspect your delivery:
Please check package for damages before accepting delivery.
Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

No Warranty:
Kindly note this item is a consumable part, and not covered by warranty. Make sure to inspect for defect(s) thoroughly before use.
