MTI  |  SKU: EQ-WK-SAB

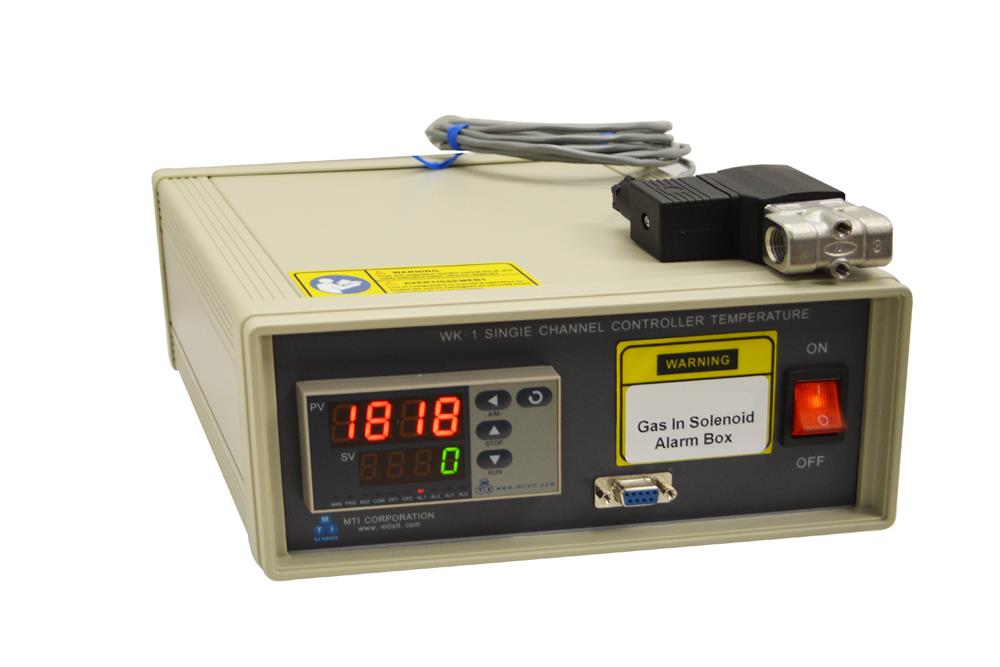

Gas Inlet Control & Temperature Monitoring Alarm Box for MTI Furnace - EQ-WK-SAB

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Gas Inlet Control & Temperature Monitoring Alarm Box for MTI Furnace - EQ-WK-SAB

MTI

EQ-WK-SAB Safety Alarm Box is designed for enhancing the safety of MTI Furnace, by shutting off the solenoid valve in Gas Inlet when the temperature drops out the normal range. It perfects for inlet gas such Oxygen while doing the deposition Experiment. The temperature is reading by the same thermocouple on MTI Furnace to keep temp uniformity.

Specifications:

 Feature Built in "auto tune" function allows you to adjust furnace temperature with minimum over-shooting.
 Input & Output
 Voltage		 Input  power 110V AC   /   Output power 110V
OR
Input  power 220V AC  /   Output power 220V
 Max. Power 2000 W

Thermo Couple Accepted

J, K, T, E, N, B, R, S,( thermo-couple is not included)

  • J range: -310 to 1832 oF (-190 to 1000 oC)
  • K range: -328 to 2502  oF (-200 to 1372  oC)
  • T range: -328 to 752  oF (-200 to 400  oC)
  • E range: -328 to 1832  oF (-200 to 1000 oC)
  • N range: -328 to 2372  oF (-200 to 1300 oC)
  • B range: 392 to 3272  oF (200 to 1800 oC)
  • R range: 32 to 3214  oF (0 to 1768 oC)
  • S range: 32 to 3214  oF (0 to 1768 oC)
Temperature Control
  • The controller uses PID via SCR power control
  • 30 segments programmable for heating rate, dwell temperature and time, and cooling rate
  • Control accuracy  +/-1.0 oC
 Overall Dimension (mm)


260 x 230 x 120 mm (L x D x H)
Back View
 Weight (kg/lbs) 3 Kg


Certificate		 Met and CE recognized ( Controller alone )

Operation Instructions View Operation Manual




Standard Package for EQ-WK-SAB
P/N   Description Quantity  Pic & Link
EQ-PLUG-4732 CONN PLUG STRAIGHT ENTRY for Connecting Heating Element 1
MTI-2S030-08 Solenoid Valve 1
1/4" O.D Tube Fitting 2
Power Cord 110V / (220V without plug) 1
MTI-ECCT Thermocouple Connector for Connecting thermocouple 1
