MTI  |  SKU: EQ-MTC-C4-2000-110V

Eurotherm Temperature Control Unit for DIY furnace optional - EQ-MTC-E4

€0,00
Max.Power & Voltage

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Eurotherm Temperature Control Unit for DIY furnace optional - EQ-MTC-E4

MTI

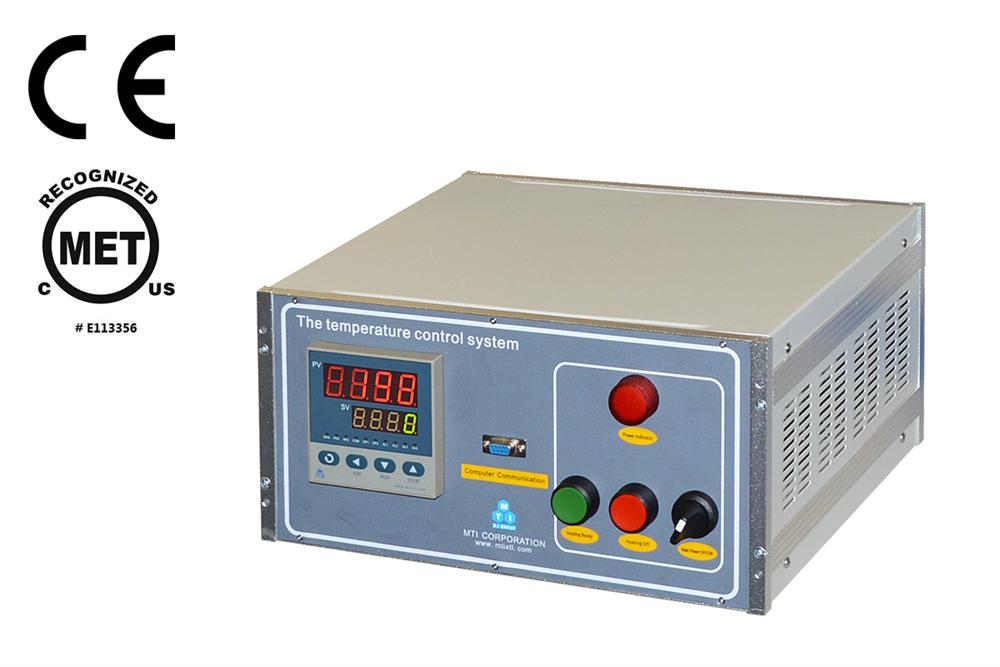

  • WK518P temperature control unit is designed for precision control of high-temperature furnace from 500 - 1500 oC with heating elements of resistant wire or SiC.
  • Just connecting the power cord and thermocouple with the unit, you can run your furnace automatically.
  • The controller uses PID via SCR power control with 30 segments programmable.
  • Built in "auto tune" function allows you to adjust furnace temperature with minimum over-shooting.
  • Built in Protection to cut-off power for over-temperature.

Specifications:

 Model                  EQ-MTC-C4

 EQ-MTC-C4-2000
 Input & Output
 Voltage		 Input  208 - 240 V AC single phase, 50/60 Hz for worldwide use

Output 220V		 Input  power 110V AC   /   Output power 110V
OR
Input  power 220V AC  /   Output power 220V
 Max. Power 5000 W  ( 25A ) 2000 W
 Thermo Couple Accepted

J, K, T, E, N, B, R, S,( thermo-couple is not included)

  • J range: -310 to 1832 oF (-190 to 1000 oC)
  • K range: -328 to 2502  oF (-200 to 1372  oC)
  • T range: -328 to 752  oF (-200 to 400  oC)
  • E range: -328 to 1832  oF (-200 to 1000 oC)
  • N range: -328 to 2372  oF (-200 to 1300 oC)
  • B range: 392 to 3272  oF (200 to 1800 oC)
  • R range: 32 to 3214  oF (0 to 1768 oC)
  • S range: 32 to 3214  oF (0 to 1768 oC)
  • Please click picture below to order a thermal couple
  • Thermal Couples ( K, S, B type ) & Calibration Kit Thermal Couples (K, S, B type) & Calibration Kit
Temperature Control
  • The controller uses PID via SCR power control
  • 30 segments programmable for heating rate, dwell temperature and time, and cooling rate
  • Control accuracy  +/-1.0 oC
 Overall Dimension (mm)


360 x 340 x 190 mm  ( L x D x H)


260 x 230 x 120 mm (L x D x H)
Back View
 Weight (kg/lbs) 5 kg 3 Kg


Certificate		 Met and CE recognized ( Controller alone )

Operation Instructions

 Note This temperature controller is designed for lab furnaces heated by resistant wire and SiC elements up to 1500oC



Standard Package for EQ-MTC-C4
P/N   Description Quantity  Pic & Link
Power Cord 220V without plug 1
MTI-ECCT       Thermocouple Connector for Connecting thermocouple 1



Standard Package for EQ-MTC-C4-2000
P/N   Description Quantity  Pic & Link
EQ-PLUG-4732-M Male CONN PLUG STRAIGHT ENTRY for Connecting Heating Element 1
Power Cord 110V / (220V without plug) 1
MTI-ECCT Thermocouple Connector for Connecting thermocouple 1
