MTI  |  SKU: TCB16E

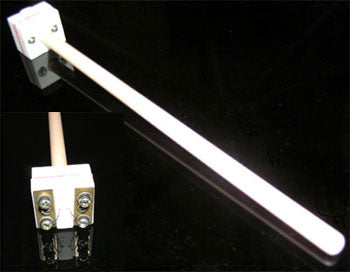

Thermocouple: B type 9" Length with Ceramic Sheath for KSL-1700X-A2 Furnace - EQ-TC-B-16

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Thermocouple: B type 9" Length with Ceramic Sheath for KSL-1700X-A2 Furnace - EQ-TC-B-16

MTI

Features:



Specifications:

  • Length:                         225 mm (8.86")
  • Diameter of Sheath:       8 mm,  high purity Alumina
  • Positive Material:           Pt/Rh (30 %)
  • Negative Material:          Pt/Rh (6 %)
  • Lowest Temperature:      50 oC
  • Highest Temperature:     1700  oC
  • Minimum Std. Error:       +/-1.4  oC
