KF 40/25 Port Straight Tube for DIY Feedthrough, EQ-FH-KF

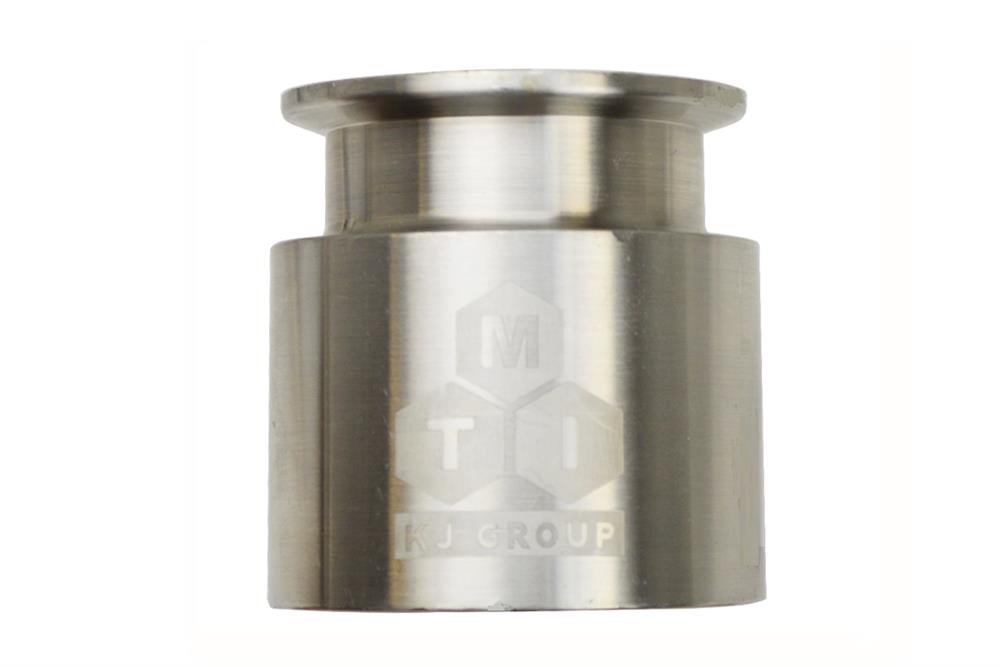

EQ-FH-KF is a straight KF40 adapter designed for DIY electric feedthrough for glove boxes. Electric wires, connectors, and epoxy are not included.

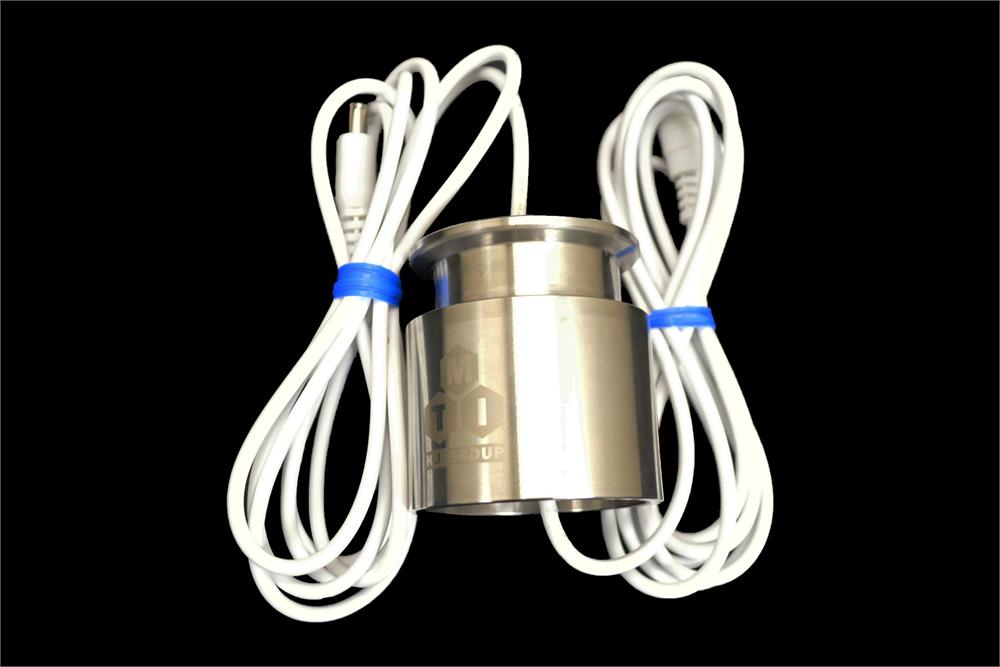

The Feedthrough with an extension power cord is designed for using MSK-160E inside a glovebox.

SPECIFICATIONS:

Model	Without Extension Power Cord: EQ-FH-KF40 /  EQ-FH-KF25 With Extension Power Cord: EQ-FH-KF40-PS24 / EQ-FH-KF25-PS24
Port Size	KF40 40mm / KF25 25mm
Dimensions	KF40
Application Notes	Designed for DIY electrical or gas feedthroughs with KF40 or KF25 ports.  Add epoxy and cure, (Plasticweld epoxy is not included). Epoxy and experience with Epoxy are required, please click the link to learn more. Need to have a KF-40 Quick Clamp with Rubber O-Ring (both the quick clamp and the o-ring are not included)
Application case with EQ-FH-KF40	Such a Feedthrough ensures air-tightness of the glove box
Application case with EQ-FH-KF25
Application Notes & Warnings	Require experience with PlasticWeld Epoxy. Electrical or Gas Feedthrough needs curing at the center of this tube,  otherwise, it may cause the failure of KF40 Clamp Clamping No power source is available inside the glove box and the customer needs to extend the power cord to the outside of the glovebox. Such feedthrough is ideal for delivering power to the glove box interior. Due to the nature of the argon atmosphere, the 24V adapter is susceptible to arcing in argon. (Nitrogen atmosphere is safe.) Such feedthrough allows the adaptor to be placed outside the glove box.
Optional	BNC, SMA Feedthrough, and other customized feedthrough are also available upon request.
