Alumina Saggar 140x140x66 mm ( 1.2L ) - EQ-CA-14146
Couldn't load pickup availability
Delivery and Shipping to EU
Delivery and Shipping to EU
We will add in the quotation, the shipping, insurance, customs clearance costs.
Alumina Saggar 140x140x66 mm ( 1.2L ) - EQ-CA-14146
Alumina Saggar 140x140x66 mm ( 1.2L ) - EQ-CA-14146
MTI
Specifications:
One high-purity Alumina saggar ( boat) for chemical calcining

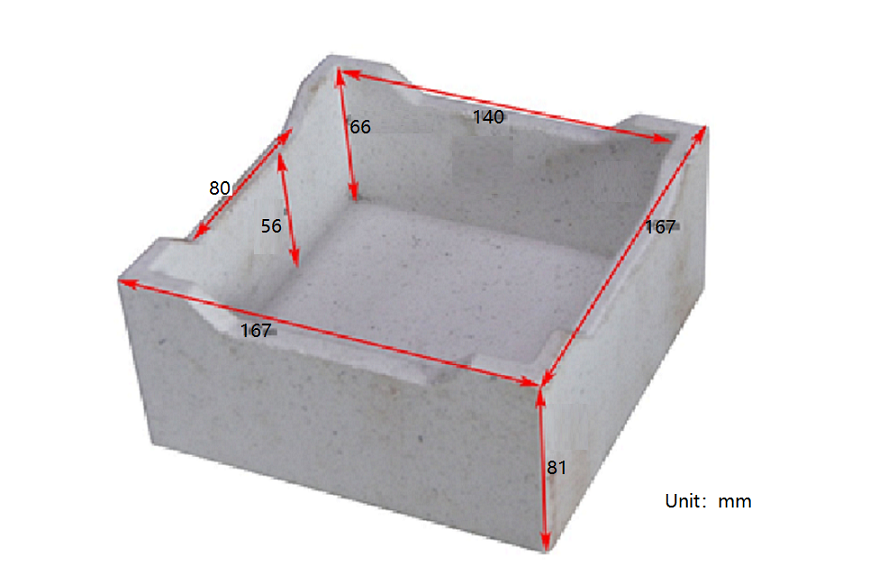

| Outside Dimension | 167 x167 x 81 mm |
| Inside dimensions | 140 x140 x 66 mm |
| Capacity | 1200 ml |
| Purity (wt%) |
Al2O3 > 85% SiO2 < 18% Fe2O3<0.5% R2O < 0.5% |
| Density | > 2.75 g/cm3 |
| Max. working temperature | 1650°C |
| Net Weight | 2 kg (4.4lbs) |

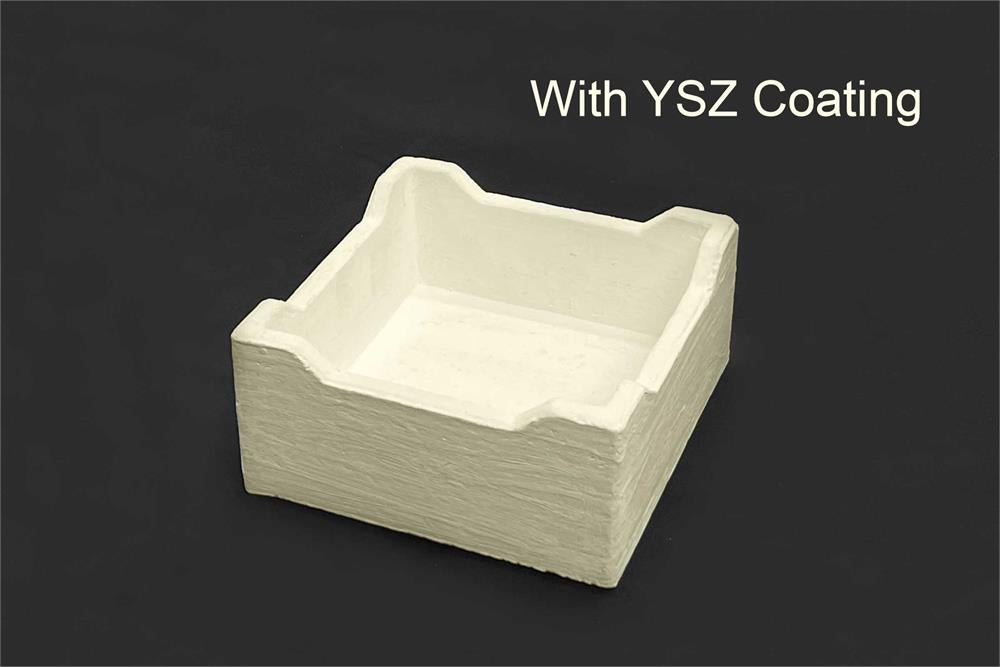

| Option | Alumina or zirconia coating on the inside saggar is available at the extra cost |
Please click here for more Ceramic Crucibles (Alumina, BN, Quartz, Zirconia, etc)
Alumina Crucibles |
Boron Nitride Crucibles |
Graphite Crucible |
Quartz Crucibles
|
Y2O3 Crucible
|
Zirconia Crucibles |
Molybdenum Crucible |
Thermoelectric Testing Fixtures
|
Inspect your delivery:
Please check the package for damages before accepting delivery.
Should damages be found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.
No Warranty:
Kindly note this item is a consumable part, and not covered by warranty. Make sure to inspect for defect(s) thoroughly before use.
