16.5 mm I.D. Dry Pellet Pressing Die - EQ-Die-16D-B

EQ-Die-16D-B is a 16.5mm I.D. pressing die set for making 16.5 mm diameter sample pellets. The pressing die is made of high-stretched and highly polished carbon steel to achieve high hardness to meet the essential requirements of making ceramic or metal samples.
( Modified structure from April 10 for quicker release )

SPECIFICATIONS:

Model Number	EQ-Die-16D-B
Maximum Load	16 metric Ton (at room temperature) 910 MPa
Material	HRC 60 - 62 hardened steel  Ra 0.08?m highly polished steel All pressing dies are made of high-stretched carbon steel to achieve high hardness to meet the essential requirements of making ceramic or metal samples. Otherwise, the pressing surface could probably get scratched.
Dimensions	A: Support Plate Thickness: 10mm B. Sleeve O.D.: ?45mm C. Die Sleeve Height: ?46mm D. Sleeve I.D. : ?16.5mm + 0.03-0.05mm  E. Top Pressing Rod Body Length: 28mm F. Top Pressing Rod Head Thickness: 5mm G. Pressing Rod Diameter: ?16.5mm ± 0.1mm  H. Bottom Pressing Rod Body Length: 23mm I. Bottom Pressing Rod Head Thickness: 7.8mm
Weight	1.3 lbs.
Material Requirement	32-75 Microns Do not use this die set for pressing powder with a particle size of 30 microns or smaller; Small particles may slip into the gap of the die parts and damage the sleeve during the compression. Ball mill or ground the powder to the size of 32~75 microns powder before pressing. Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps. For pressing sticky metal powders such as Al, Mg, and Zn, it is necessary to use dry or alcohol-based tool lubricant to lubricate the die and sleeve set to reduce friction during the compression.

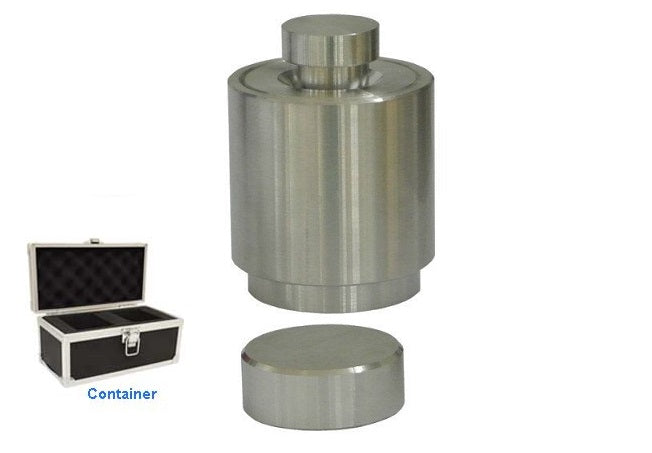

Package Content	One pressing die sleeve One top-pressing die One bottom-pressing die One support plate One die kit container
Safety Precaution	To avoid the risk of accidents and damage to the Pressing Die, please read these instructions carefully before installation and before using it for the first time. Read the manual, especially the die installation schematic, before the operation. Do not press flammable, explosive materials. The operator must wear a protective goggles. You must have a hydraulic pellet press equipped with the Protection Cover, please click the pictures left to order. To avoid damaging the die core and sleeve, we strongly recommend pressing powder with a professional laboratory hydraulic press to ensure the evenest pressing interface and uniform pressure force.
Pressing Die Installation Schematic / Instruction	Mixing and grinding chemical powder by agate mortar or Ball Mill Calcine mixed the powder in a high temp furnace under a suitable temperature Crushing and Grinding calcined powder again by mortar or ball mill Put calcined powder into the die Pressing sample by a pressing machine under suitable pressure ( You may use CIP to press again to increase density by about 5 - 10%.) Take out the pellet sample from die Sintering the pellet under a suitable temperature
Application Notes	Use ethanol to clean the pressing die before and after use every time Use anti-rust oil after the operation and store the kit inside the original box in a dry place to avoid rusting. You may consider using EQ-BNMR for easy mold release. Please click the picture below to order.
