Customized 200 - 400 - 25T Hydraulic Flat Hot Press with Dual Temp. Controller - YLJ-HP1818V

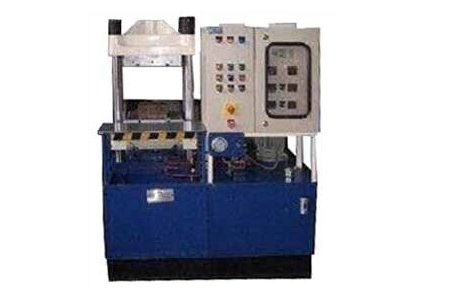

YLJ-HP1818V is large heatable  Lamination press with 18"x18" platens with Max 250oC working temperature and 200 PSI working pressure, which consists of a 25T  hydraulic press with manually operated oil pump & two heated platens. The temperatures of heated platens are contro lled by two digital temperature controllers separately  One pressure gauge (250 KN) is also mounted to monitor the pressure applied on the platens.

SPECIFICATIONS:

Hydraulic  Press	Hydrailic press manually operated as picture left ; electrically operated version available at extra cost) 25 metric Tone ( 250 KN)
Voltage	220VAC +/-10%, 50/60Hz 7000W Max.  ( 40A breaker required )
Pressure Gauge	Measuring Accuracy is  +/-1.25 KN
Heated Platen Area	Platen Area:  10"x10"  ,  18"x18" ( optional ) Material:         Headen Steel  Surface:         Flating with CNC grinding
Max. Travel Distance	5"  (125mm)  Max.
Max. Working Temperature	205°C continous  250°C for less 30 minutes Max. 400 is vailable upon request at teh additional cost
Heating Rate	5°C/min  ( ~ 10 F/min )

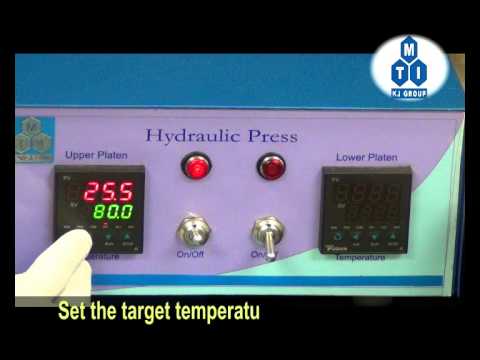

Temperature Control	Two digital controller installed in one box with one point control  and ayto-tune faction Temperature accuracy ±1°C.
Compliance	CE Certified
Machine Dimensions Pictures	TBD
Shipping Size	TBD
Shipping Weight	TBD
Operation Instructions
Warranty	The pressing machine was quality inspected in USA, lifetime support is provided One year limited standard warranty (Extended warranty is available upto 5 years at extra cost)
