MTI | SKU: CR2016CASE316

CR2016 Coin Cell Case (20d x 1.6 mm) with SS304 and SS316 Option, 100 pcs/pck-CR2016-CASE

Name: CR2016 Coin Cell Case (20d x 1.6 mm) with SS304 and SS316 Option, 100 pcs/pck-CR2016-CASE
Brand: MTI
SKU: CR2016CASE316
Price: 250.70 EUR
Availability: InStock

€250,70

Material

Product variants

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

CR2016 Coin Cell Case (20d x 1.6 mm) with SS304 and SS316 Option, 100 pcs/pck-CR2016-CASE

MTI

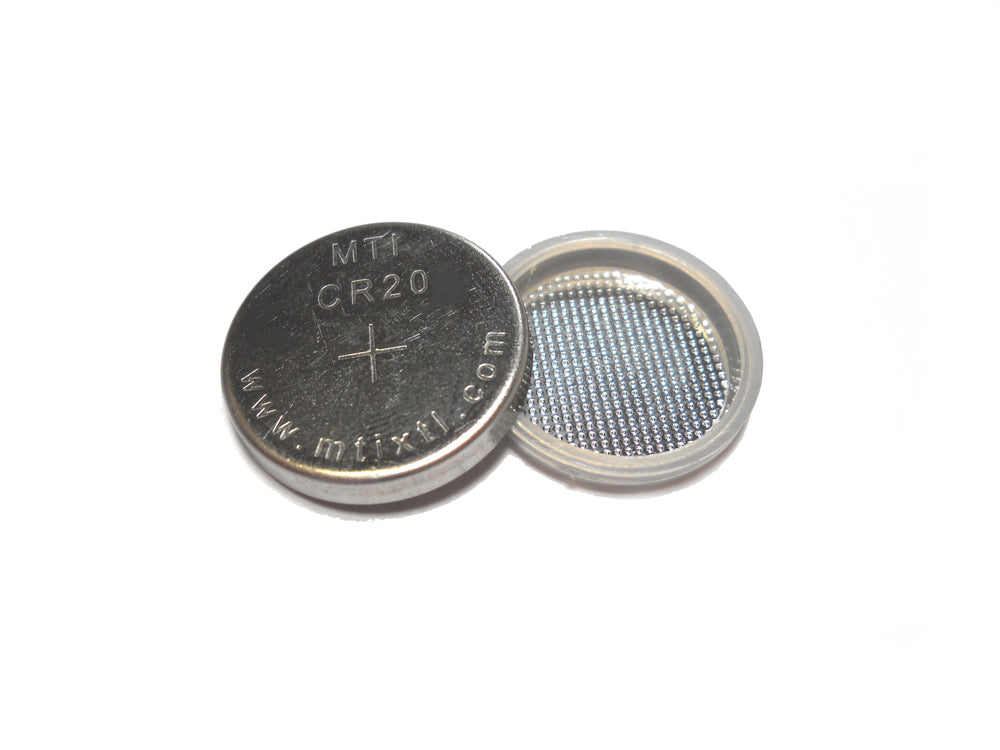

100 pcs of CR2016 button cells cases, made of stainless steel 304 or 316 with PP sealing O-ring

Specifications
Material	SS304 or SS316 , please choose from product option bar
Overall Dimensions (Dia x Height)	20mm x 1.6mm
Case Dimension	Cathode: O.D. = 20.0mm, I.D. = 19.4mm Anode: O.D. = 19.3mm, I.D. = 16.8mm
Weight	0.1 oz (2.0 grams)
Materials	Stainless Steel 304 or 316 case, please choose from the options bar. Polypropylene Sealing Gasket Max. working temperature: 80 °C

Options
please consider Al cladded CR2032 case, which can avoid electrolyte corrosion when the battery >4.5V	CR2016 coin cell case for in-situ XRD analysis	Please click the picture to find other size coin cell
