MTI  |  SKU: CGM2F

Compact Two Channel Trace Gas Mixer (16 -160 ml/m Flowmeter) - CGM-2F

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Compact Two Channel Trace Gas Mixer (16 -160 ml/m Flowmeter) - CGM-2F

MTI

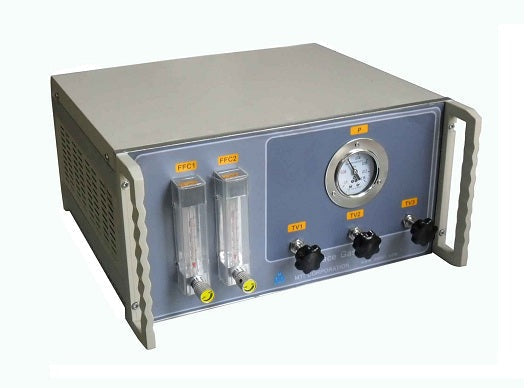

CGM-2F is a compact two-channel trace gas mixer for inert gas control in small tube furnaces, glove boxes, plasma cleaner, small PECVD system. This mixer regulates both line pressure and flow rate, and assures that you get the precise mixture at a lower cost and compact design.  You can easily adapt this unit to most operations in atmospheric chambers.

SPECIFICATIONS
Floating Flow-meter Two Floating Flow-meter with flow rate range from 16 to 160 mL/min
Mix Tank One stainless steel mix tank built in for better gas mixing
Mechanical Pressure Gauge (mixing tank) 0 - 1.0 MPa, (0.02 MPa/grit)
Fittings & Valves Three Pipe fittings for 1/4" pipe (nylon or stainless steel)
Three vacuum needle valves made of SS304

Compact size 360 L x 380 W x 200 H (mm)
Operation Manual
Warranty One year limited with lifetime support
Net Weight 14lbs
Shipping Weight & Dimensions 28 lbs; 19"x18"x12"
