MTI  |  SKU: EQ-BTC-201

Compact Temperature Controller with Heating and Cooling Control - EQ-BTC-201

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

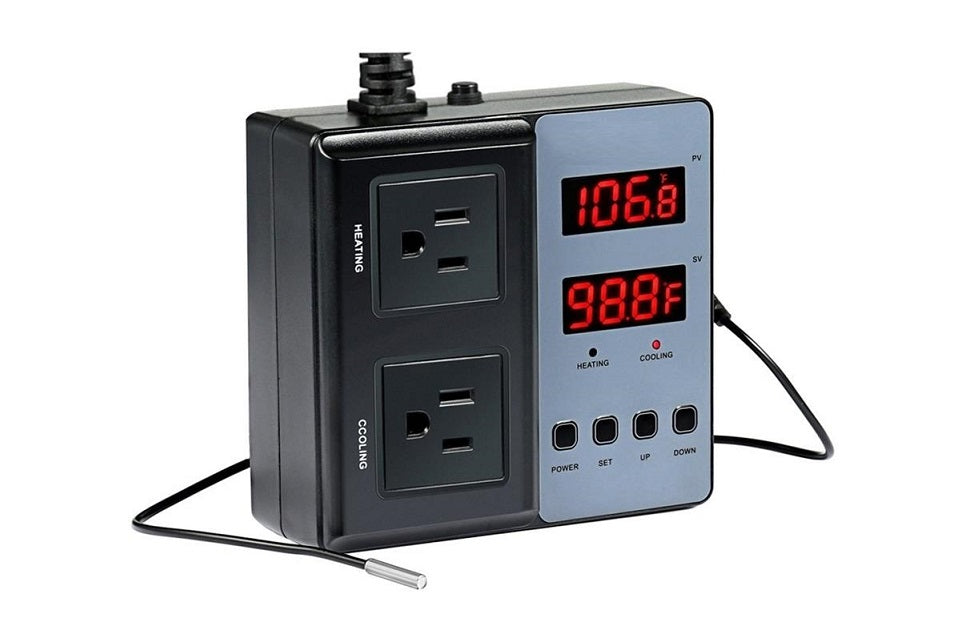

Compact Temperature Controller with Heating and Cooling Control - EQ-BTC-201

MTI

EQ-MTC-201 Temperature Controller offers convenient solution to temperature control. It features precise On/Off control of the heating and cooling equipment within user defined temperature range.

Specifications:

 Model
 EQ-BTC-201

 EQ-BTC-211
 Power
  • Input Voltage:  110 - 240 VAC single phase, 50/60 Hz
  • Output Voltage: same as input
  • Controller Power Consumption: <3 W
  • Max Current: 10 A
  • Max Load: 1100 W @ 110V,  2200W @220 V
  • Max Current: 15 A
  • Max Load: 1650 W @ 110V, 3300W @220 V
 Temperature Control
  • Range: -50 - 110 °C (-58 - 230 °F)
  • Resolution: 0.1 °C

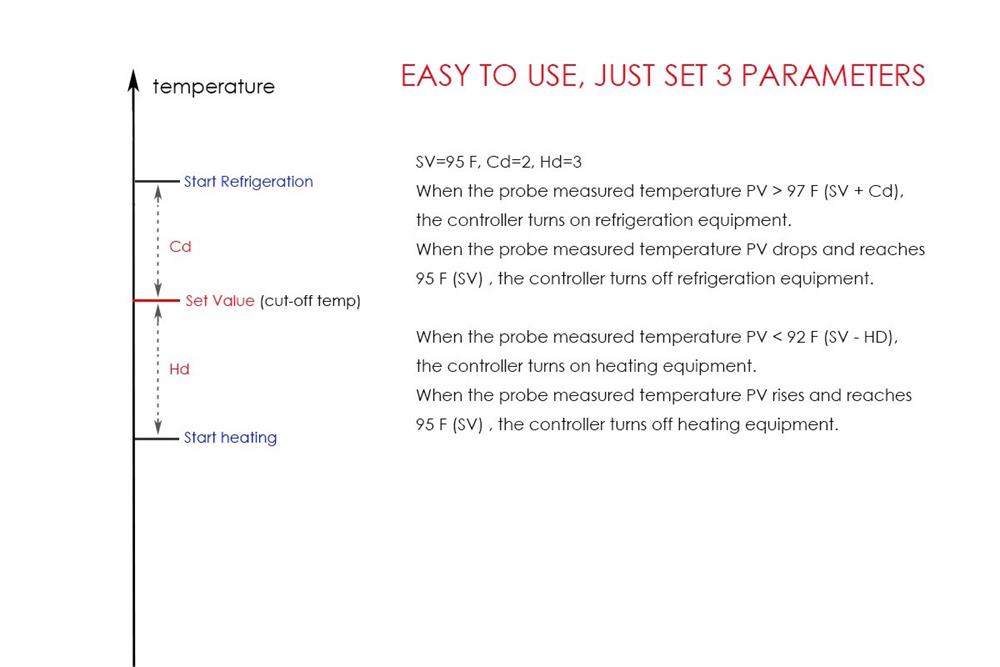

  • Working Mode: On/Off control, Heating and Cooling
Dimensions
  • 125 (L) ×115 (W) ×50 mm (H)
Operating Environment
  • 0 - 50 °C
 Weight
  • 0.5 kg
Compliance
  • CE certified
For Temperature & Humidity Control
  • EQ-ITC-608 Temperature Humidity Controller features both temperature and humidity probes and control with 15A load capacity.
