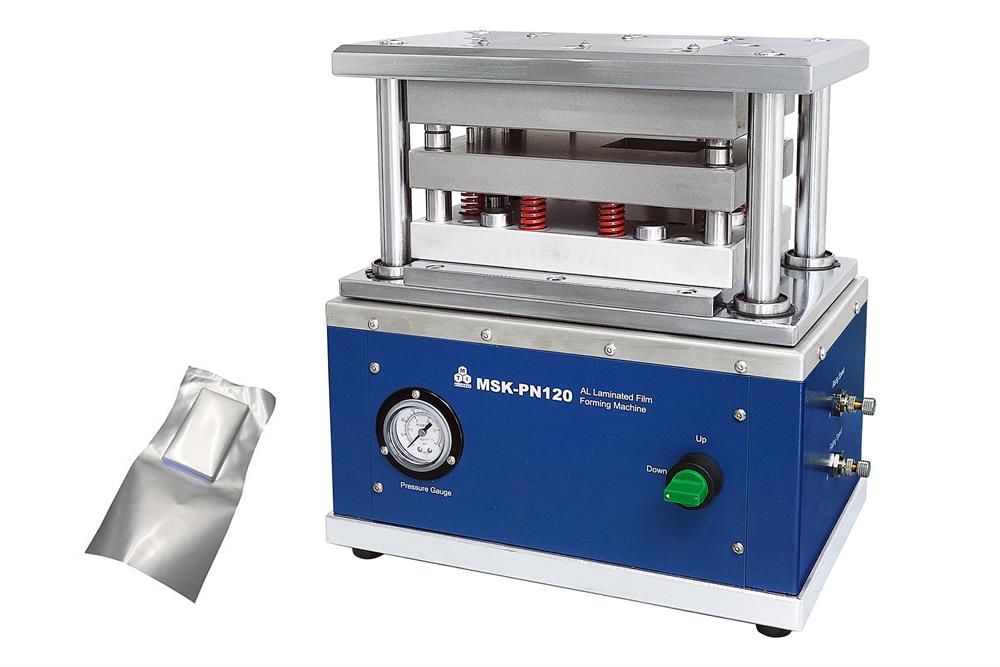

MSK-PN120 is a compact gas-driven Aluminum Laminated Films pouch case forming machine for pouch cell fabrication laboratory, which fits the electrodes cut by MSK-180S electrode cutting machine. The adjustable depth (spacers set is included in the standard package) allows the formed case to fit electrodes stacked in different heights.


SPECIFICATIONS:
Features Pure pneumatic press with adjustable press speed and pressure.
No electrical parts.
Standard Die Size

 4 sets of dies with various heights are included; there are 6 of them in each set.
Dimension 3mm depth die: 20mm Dia. x 18mm (H)
Dimension 4mm depth die: 20mm Dia. x 17mm (H)
Dimension 5mm depth die: 20mm Dia. x 16mm (H)
Dimension 6mm depth die: 20mm Dia. x 15mm (H)
Standard die size: 62mm (L) x 45mm (W) x 3/4/5/6 mm(Depth), which perfectly fits the electrodes cut by MSK-180
Customized Die Size
  • Customized die: $3675/set, delivery time 6-8 weeks.
  • Max die size: 40 x 35 mm (dual holes, fold, airbag)
  • Max die size: 61 x 47 mm (single hole, fold, airbag)
  • Max die size: 80 x 35 mm (single hole, four-side sealing, airbag)
  • Max die size: 80 x 65 mm (single hole, four-side sealing, no airbag)
Air Pressure Requirement
    pic1               Pic. 2
  • 0.8 - 1 MPa Air  or inert gas
  • For use inside the glove box, please use inert gas
  • Air Compressor is not included. Please click here to order.
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Max. Punch Cell Case L: 160 mm, W: 125 mm, Depth < 6.0 mm (accurracy: ±0.05mm)
Max. Punching Pressure 1 metric ton
AL Laminated Film
Warranty
  • One-year limited warranty with lifetime support
  • Rusting and damage due to improper storage condition or maintenance is not covered by warranty
Product Dimensions

 370mm(L) x 245mm(W) x 336mm(H)
Net Weight 45kg
Shipping Weight & Dimensions
  • 155 lbs
  • 40"x36"x30"
Operation Manual & Video
Die Installation Warning
  • The tolerance of precision die is very little; Misalignment will result in die damage. Following operation manual when installing the die.  MTI is not responsible for the damage caused by desperation.
