Graphite Crucible: 75mm OD x 60mm ID x 105mm DP, 250 mL - CG75D105H

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Graphite Crucible: 75mm OD x 60mm ID x 105mm DP, 250 mL - CG75D105H

MTI

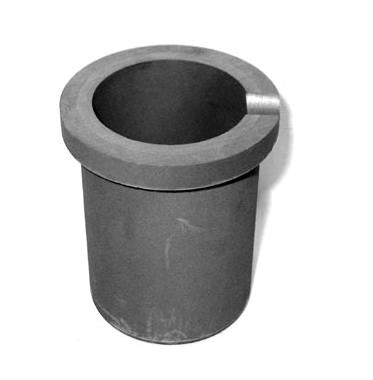

CG75D105H is a High purity graphite crucible for induction heating and metal melting, Machined graphite crucible. Flat bottom.

Specification:

Part Number CG75D105H
Outside Diameter of top edge 3.346" (85 mm)
Outside Diameter of bottom   2.952" (75 mm)
Inside Diameter 2.362" (60 mm)
Depth 3.700" (95 mm)
Height 4.133" (105 mm)
Capacity working volume ~250ml; maximum volume ~270ml



PROPERTY  US VALUE METRIC VALUE
Particle Size 0.008 in 0.02032 cm
Density 0.063  lb/in 3 1.74 gr/cm 3
Flexural Strength 3200 psi 22.1 mpa
Compressive Strength 6200 psi 42.7 mpa
Resistivity 4.0 ohm/inx10 -4 4.0 ohm/inx10 -4
Thermal Conductivity 110 BTU/(h.ft 2 °F/ft) 190 W/(m 2 . K/m)
CTE 1.3 in/in °F x 10 -6 2.4 Microns/m °C
Temperature (Air) 750 °F 399 °C
Temperature (Inert) 5000 °F 2760°C
Ash 0.1% 0.1%

Inspect your delivery:
Please check the package for damages before accepting delivery.
Should damages be found, please keep all packaging materials, take pictures, and report immediately to the carrier/MTI.

No Warranty:
Kindly note this item is a consumable part, and not covered by a warranty. Make sure to inspect for defect(s) thoroughly before use.
