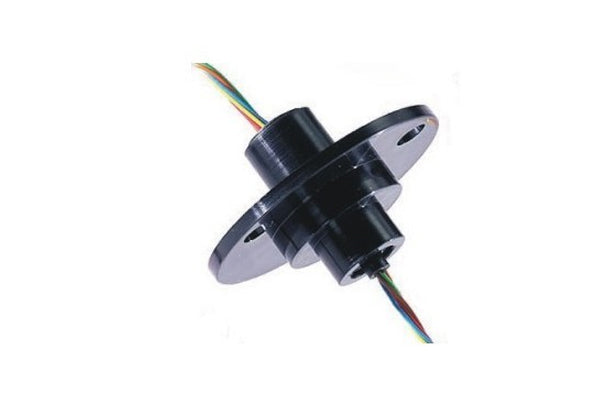

Capsule Slip Ring FOR VTC-3HD, VTC-1RF, MTI-PSC-CSP

Technical parameters

access

4

operating temperature

-20~-60

operating humidity

60%RH or higher

rotate speed

0-500rpm

Electrical performance

rated current

5A/10A/15A/route or higher

rated voltage

240VAC/DC

insulation resistance

500M?@500VDC

fluctuating value of the dynamic resistance

min. 1 M?

compression strength

The distance of any two routes?500VAC@50HZ

Mechanical properties

Material of the housing

engineering plastics or metal

Material of the contact

gold-gold

moment of force

?9.25g.m (reference value)

cord length

Standrad 250MM

cord specifications

UL teflon®

protection class

IP54 or higher
