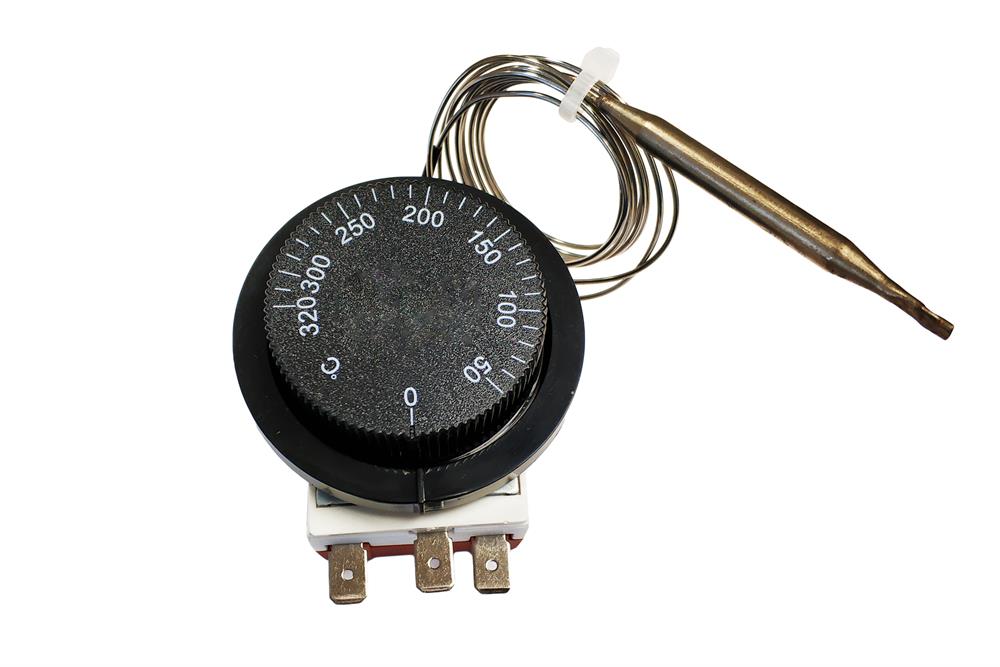

Capillary Thermostat for Furnace External Body Temperature Monitoring - EQ-CT320

EQ-CT320 is an external thermostat for monitoring the temperature of the furnace body, which will shut off the furnace if the external temperature reaches to the limit.  The thermostat temperature controller provides an extra layer of safety when using MTI's furnaces as well as prevent accidental scaldings.

SPECIFICATIONS

Contact Rating	20A, 250VAC
Min. Temperature for power cut-off	50°C
Max. Temperature  for power cut-off	320°C
Compliance	CE Certified UL Recognized

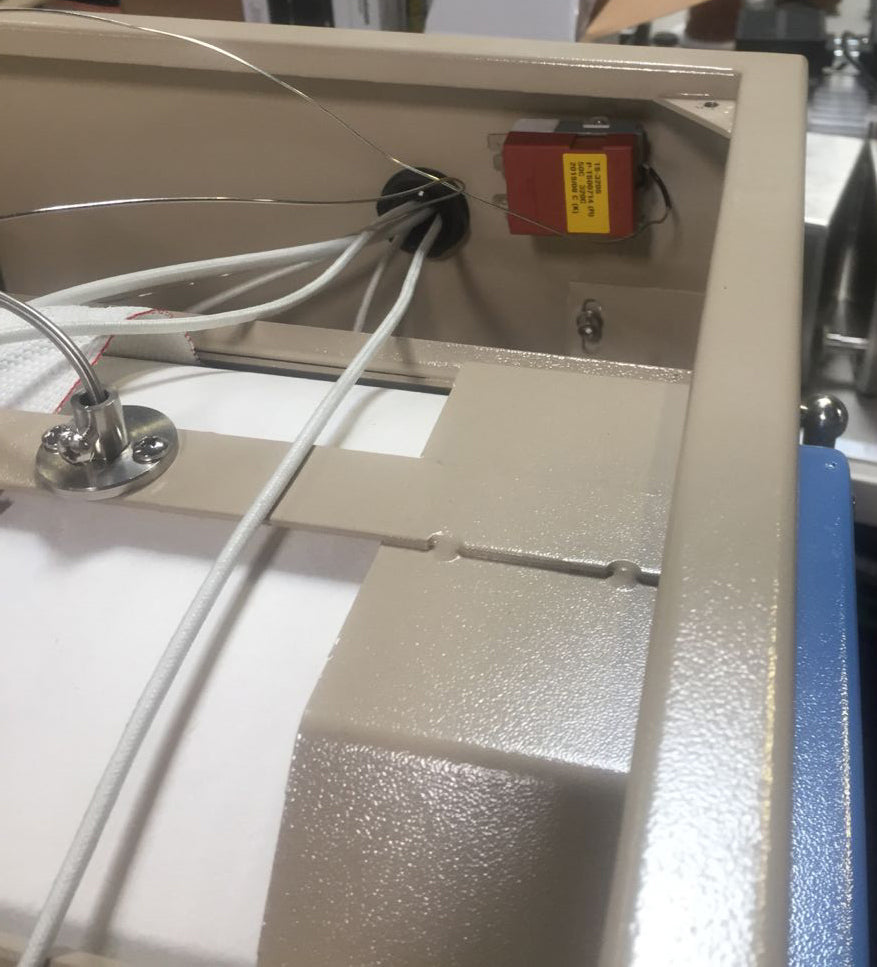

Installation	Thermal Couple shall be fixed on the inside case, the temperature setting button shall be installed outside the furnace
