MTI  |  SKU: TCC20

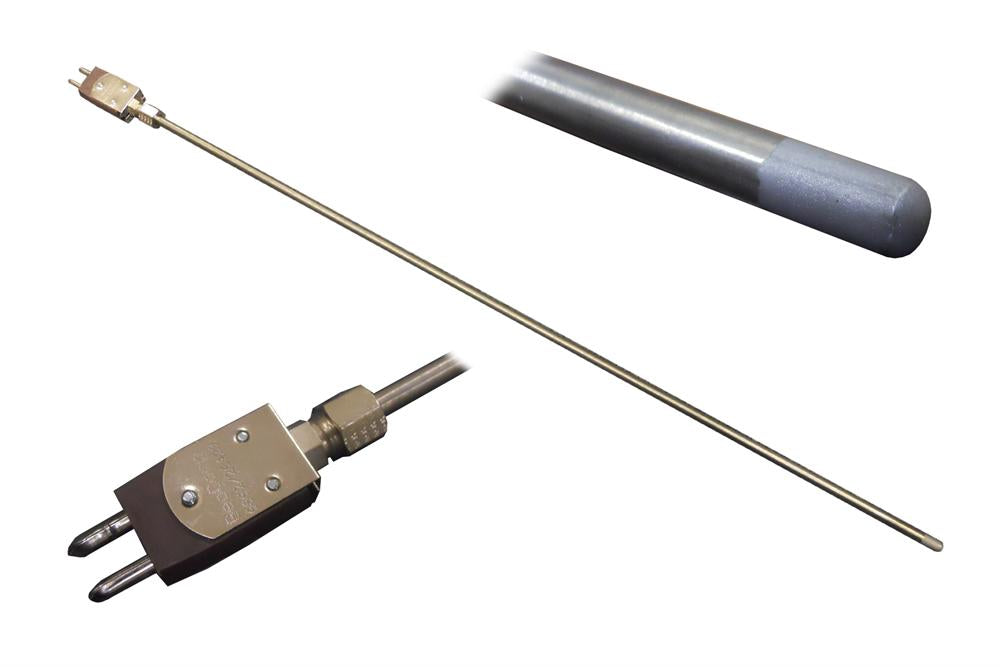

C type Thermocouple 1/4" OD x 20" L with Mo and Hafnia sheath up to 2300C - EQ-TC-C-20-LD

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

C type Thermocouple 1/4" OD x 20" L with Mo and Hafnia sheath up to 2300C - EQ-TC-C-20-LD

MTI

C type thermocouple can be applied for high temperature up to 2300 °C and it must be used under high vacuum environment.

SPECIFICATIONS

Length 20"
Diameter of sheath 1/4"


Simplex Thermocouple Assembly
  • Assembly is epoxy sealed for vacuum service
  • Molybdenum sheath
  • Ungrounded hot junction
  • Termination is a standard temperature and standard size male plug (round pins)

Sheath Material
  • Molybdenum
  • 1/2" of hafnia insulation at the dulled tip
Positive Material Tungsten-5% Rhenium
Negative Material Tungsten-26% Rhenium
Lowest Working Temperature 1000 °C
Highest Working Temperature 2300 °C
Minimum Std. Error +/-  FS 2%

Application Notes
  • C type thermal couple must be used under high vacuum
  • Thermocouple is not bendable
