MTI  |  SKU: BST8-HBP-5A

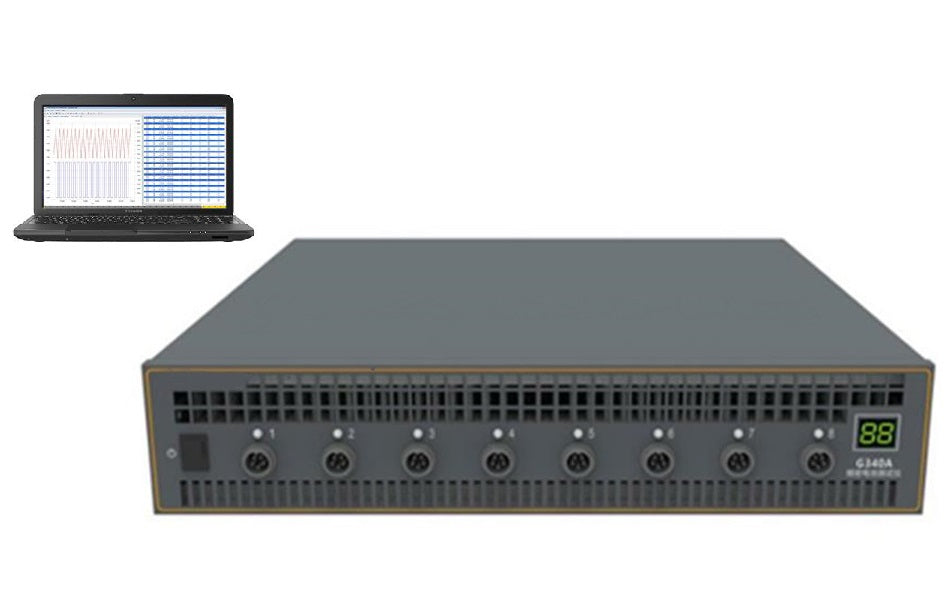

8-Channel Hybrid Battery Tester and Potentiostat up to 5A-5V w/ Laptop & Software - BST8-HBP-5A

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

8-Channel Hybrid Battery Tester and Potentiostat up to 5A-5V w/ Laptop & Software - BST8-HBP-5A

MTI

BST8-5A is an eight-channel hybrid battery analyzer and potentiostat for battery and fundamental electrochemical research with a current range from 15nA ~ 5A, up to 5V. This analyzer can measure all kinds of full batteries, half batteries, and three-electrode electrochemical tests, which is suitable for battery material and finished product research, farad capacitor material, and finished product research. The purchase comes with a brand-new laptop with the latest version of controller software installed and calibrated for immediate use.
FEATURES

  • Supports precision research and testing with 0.01% voltage and current accuracy.

  • Supports high-rate fast charge research, 30C can achieve 0.01% capacity accuracy; 100C can reach 0.1% capacity accuracy.
  • Supports custom pulse test with a minimum pulse width of 2ms.
  • Full coverage of the measurement records of the voltage, current, capacity, energy, efficiency, capacitance, internal resistance, and other parameters required for the study.
  • The device comes with UPS and storage to effectively prevent data loss and damage caused by downtime, sudden power failure, network failure, etc.
  • Supports multiple working conditions testing such as CATC, NEDC, and WLTC, which can accurately simulate the actual usage scenarios of batteries.

SPECIFICATIONS

Electricity Requirement
  • AC220V ±10% 50Hz, 400W
  • AC110V ±10% 60Hz, 400W

Operation Interface

Current

  • Four ranges of max. current are included and switchable on the device

    • Range 1: 0 - 150uA;
    • Range 2: 150uA - 5mA;
    • Range 3: 5mA - 150mA;
    • Range 4: 5A;

    Accuracy: ± (0.01% of full scale)

Voltage
  • Range: 0 - 5V programmable
  • Accuracy: ± (0.01% of full scale)
  • Voltage monitor is possible when no testing process is running.

Time
  • Accuracy: ?±5 us/s (Equipment autonomous control, no communication, and other time delay errors)
  • Minimum Step Time: 20ms
  • Minimum Pulse Time: 2ms
  • Sampling Interval: ?10ms

Input Impedance
  • ?10G?Input base current < 0.5nA

Data Record
  • Sampling Rate: 100HzSampling interval 10ms
  • Setting Method: Interval time, Sampling rate, Interval current, Interval capacity, Interval voltage, Interval energy

Max. Program steps
  • 1024 steps

Output
  • Four electrodes (support reference electrode test)
Communication
  • 10/100M Ethernet(RJ45), USB(Console)
Operating Environment
  • Temperature 0~4023±2 Optimum accuracy
  • Humidity ? 90% No condensation

Process Control
  • Eight independent programmable channels. Each channel can work under different modes and functions independently
  • Working modes Include:
    • HOLD / CC / CV / CCCV / CRATE / CP / CR / CPULSE / CSLOPE / DC / DV / DCDV / DRATE / DP / DR / DPULSE / DSLOPE
  • End Conditions:
    • TIME / VOLTAGE / CURRENT / POWER / CAPACITY / ENERGY / LOOPS / PHASE CYCLE
  • Protective Function:
    • Power-off data protection, Net break protection
    • User-defined safety: Over voltage, Under voltage, Over current, Over rate, Over capacity.

Test Reports and Curves for Analysis
  • Various graphs and curves can be created by software based on user definition. (Voltage-time curve, current-time curve, capacity-voltage curve, loops times charge/discharge capacity curve, loops times charge/ discharge efficiency curve, etc)
  • Data reports are created by software in excel format. A copy of MS Excel must be installed in order to export data. The user can easily compare the performance of the batteries tested in channels both visually and statistically.

Function
  • DCIR, Capacitance capacity calculation, Step pulse, Three-electrode testReference test, DQ/DV

Battery clips
  • 8 set of alligator clips for coin cell connection.

Laptop Computer
  • Brand new laptop with Windows 11 for data export. (Excel activation is required.)
  • Software is installed and calibrated for immediate use.
  • Notice: We strongly suggest you keep an instant backup of the collected data using an external hard drive.

Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at an extra cost

Application Notes
  • Warning: Please choose NEVER for Screen and Sleep off in the Power& Sleep setting of your computer, or it may lose connection from the battery analyzer.
