MTI  |  SKU: ECO519

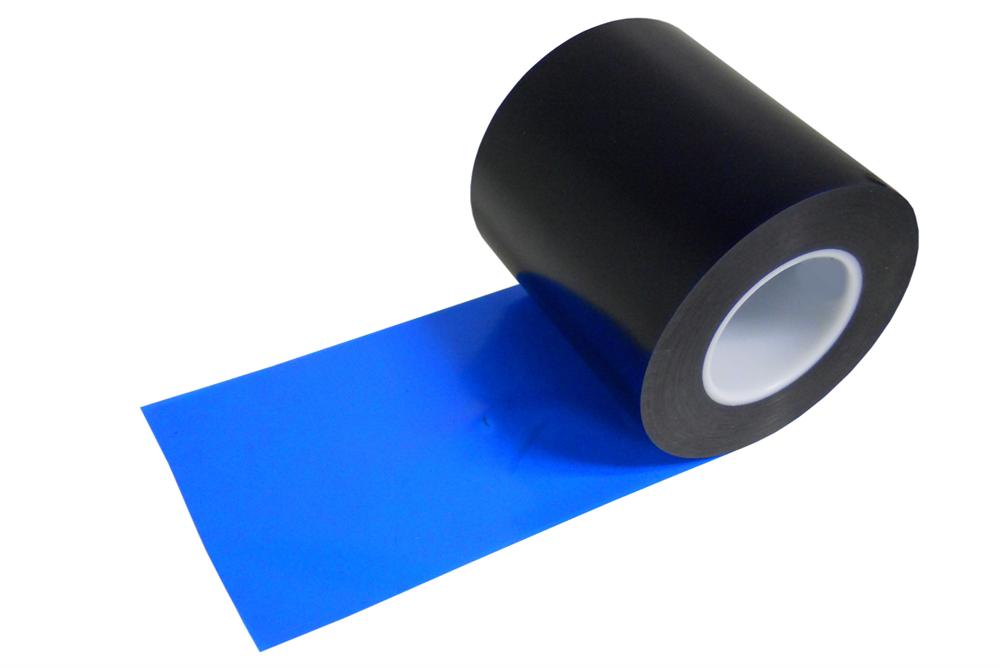

Blue Adhesive Plastic Film (PVC) for Vacuum Chuck on Spin Coater, 10 feet/ package - EQ-ECO-519-LD

€33,93

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Blue Adhesive Plastic Film (PVC) for Vacuum Chuck on Spin Coater, 10 feet/ package - EQ-ECO-519-LD

MTI

EQ-ECO-519-LD is a High strength adhesive film on one side for bonding wafer (up to 6" Dia.) or thin substrate (< 2.0 mm thickness) to vacuum chuck of VTC-50, VTC-100, VTC-200
Click here for SDS

SPECIFICATIONS:

Width

6.0"

Thickness

125?m

Length

Price sold by 10 feet per quantity

Item

It is the consumable part, replace the gasket each time assembly. It may cause a leak when reusing.

Application case

Programmable Hi-Speed Spin Coater (10K rpm & 5" max) with Vacuum Chucks (Optional Heating Cover) - VTC-100PA
The tape can hold a rectangular/ square slide at 10000 RPM, in high-speed mode, there is two things need to do.
  1. Do not reuse the tape
  2. Use the largest chuck, a vacuum chuck with the diameter of 4 inch or larger is recommend.
  3. Put the tape and the sample on the very middle of the vacuum chuck.

Application Notes
