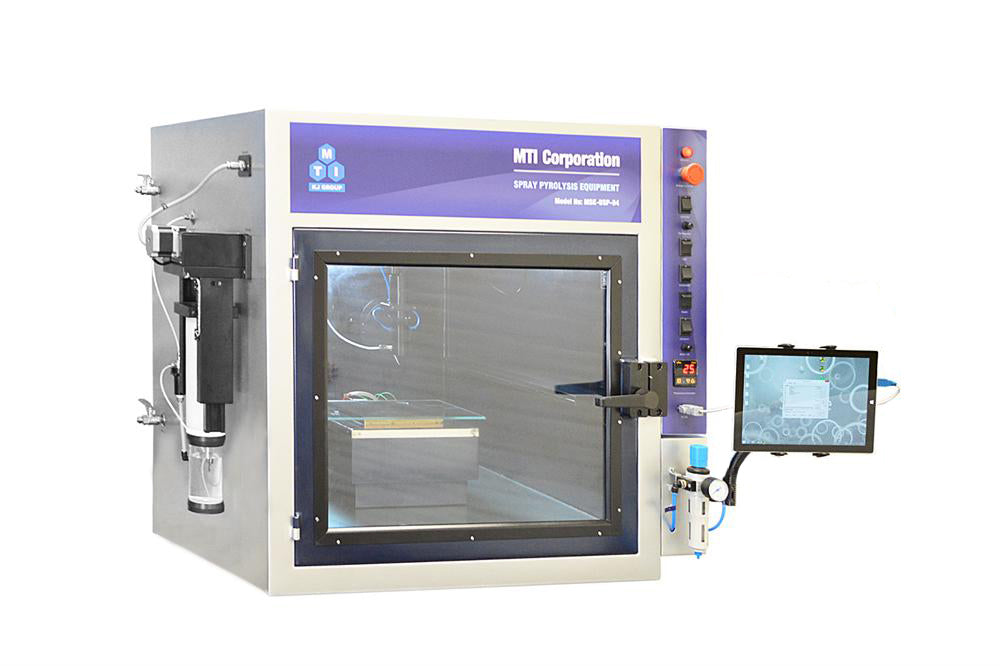

Bench-Top Ultrasonic Spray Pyrolysis Coating Unit with 6"°6" Heating Plate up to 500C - MSK-USP-02

Spray pyrolysis is a process in which a thin film is deposited by spraying a solution on a heated surface, where the constituent reacts to form a chemical compound. The process is particularly useful for the deposition of oxides and has long been a production method for applying a transparent electrical conductor of Tin oxide (SnO2) or Stannic oxide to a glass substrate. Now, this technique is increasingly used to prepare perovskite thin film, such as in perovskite solar cells.
MSK-USP-02 is a desktop ultrasonic spray pyrolysis (USP) equipment or called Mist CVD where parameters like dispensing rate of the solution and speed of spray head movement are precisely controlled by a software interface. A positive displacement pump controlled by a stepper motor is used to dispense solution as per requirement. The ultrasonic spray head provides thin-film coating and its movement is controlled by the stepper motor driven linear stages in X and Y direction to ensure uniform coating. The spray pattern and velocity can be adjusted by changing the compressed air pressure at the nozzle. The temperature of the substrate heater plate is controlled independently through a dedicated controller.

Power Input	Single-phase 208 - 240 VAC,  50/60 Hz Please order a 1500 W transformer for running the machine only at 110 V Actuator: Stepper motor, 24 VDC
Dimensions	Machine Overall     Chamber Size (700mm Wide x 700mm Depth x 700mm Height)
Dispenser	Three spray heads are included  Ultrasonic spray head (compressed air assisted, pinhole diameter of 2 mm) for uniform, thin-film coating (Pic. 1)) Compressive air spray head with 0.3 mm diameter of pinhole for thick film coating ( Pic. 2) Optional quartz glass air spraying head with 0.3 mm pinhole for small araes thin coating ( Pic. 4) 20 mL syringe pump with two air nozzles for small quantity coating. (Low viscosity <3000) ( Pic.4) Spray head travel distance: 150mm (Lowest) to 250mm (Highest), 200mm (X-axis), and 235mm (Y-axis)               Pic. 1    Pic. 2  Pic. 3    Pic. 4 Dispensing unit capacity: 50 mL & 250 mL (two containers included) container Container dispensing rate: 1-20 mL/min adjustable via software Syringe pump dispensing rate: 20 ?L/min - 10 mL/min adjustable via software One brand new laptop computer or one Microsoft Surface Pro with pre-installed software is included. (Pls select at the Product Options)
Sprayer	Ultrasonic atomizer nozzle: 40 kHz, 130 W Producing a fine spray of droplets of 50 microns average size Fluid viscosity range: 1 - 50 mPa·s (cP) Sprayer traverse:  X - Y 200 mm max Drive speed X-axis: 10-800 mm / sec Drive speed Y-axis:  1-12 mm / sec Note: you may use inert gas or compress air to shape the spray pattern and increase spray velocity
Air Compressor	Compressed air with a pressure of ~ 4 bar is required for normal operation of the unit One compact air compressor is included for immediate use Attention: If a gas cylinder is used instead of an air compressor, a two-stage pressure regulator(pic1) must be installed
Substrate Base Plate	Dimension: 150 mm נ150 mm Max temperature: 500°C
Software	The system controller box is connected to the laptop or Surface Pro via RS232 port and USB adapter Centralized software control of dispensing rate, X-Y stage movement, solution loading and draining  All of the process parameters can be saved as a user process and retrieved later for analysis or re-run One brand new laptop computer or one Microsoft Surface Pro with pre-installed software is included. (Please select at Product Options)
Warranty	One year limited warranty with lifetime support (demo before purchase available)
Compliance	CE certified
Operation Instruction & Demo Video
Application Note	Many factors affect the quality of the coating as below. The customer needs test to find the best processing parameter  Cleanliness  Surface area  Surface topography or profile  Temperature (thermal energy)  Time (reaction rates, cooling rates, etc.)  Velocity (kinetic energy)  Physical & chemical properties  Physical & chemical reactions
Reference Articles	Efcient inorganic-organic hybrid heterojunction solar cells containing perovskite compound and polymeric hole conductors UCLA researchers improve the process for manufacturing highly efficient solar cells Sub 150° C Processed Meso-superstructure Perovskite Solar Cells with Enhanced Efficiency Properties of TiO2 Films Prepared by the Spray Pyrolysis Method
Shipping	Two pallets: 630 lbs with 52" x 50" x 47" dimension, and 110 lbs with 47" x 39" x 33" dimension
Application Notes	Be cautious of using hazardous materials. The working chamber of this unit is not flame-proof, explosive proof or vacuum-sealed. Contact your health and safety department for detailed material handling instruction and prevention/protection practices. If you need a vacuum-sealed safety chamber please consider the MSK-USP-06.
