MTI  |  SKU: MSK-TE912

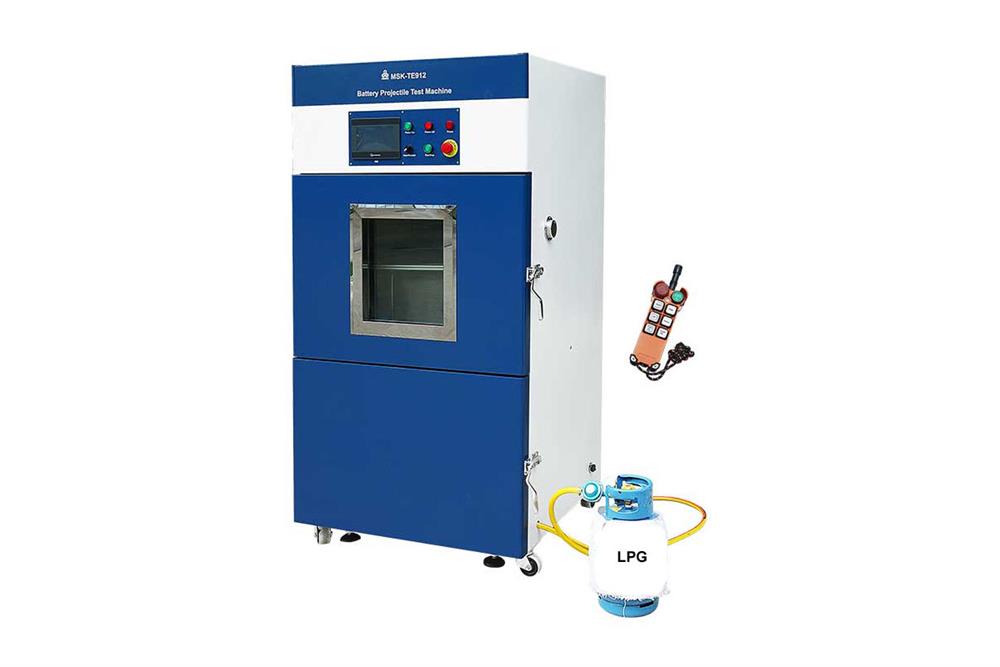

Battery Projectile (Burning) Tester with Remote Control for Lithium Batteries(UL 1642 & UL 2054) - MSK-TE912

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Battery Projectile (Burning) Tester with Remote Control for Lithium Batteries(UL 1642 & UL 2054) - MSK-TE912

MTI

According to the battery testing standard GB31241-2014, UL 1624, or UL 2054, the MSK-TE912 is a programmable battery projectile test chamber, capable of studying the performance of Lithium batteries during the burning and flaming test.

MTI has granted the patent 201720584334.7 for the Battery Projectile (Burning) Testing System MSK-TE912 since January 2018.

Please click here to review the UL 1624 19.3 Projectile Testing requirements

Specifications
Test Chamber Features
  • SS 304 stainless steel double-layer chamber with foam polyurethane and fiberglass as the thermal insulator
  • Anti-explosion LED light (30W) is installed inside
  • A venting port with a high-quality exhaust fan is installed in the back of the chamber connected to the site venting system (ducting and exhaust system are not included )
  • LPG gas source is required (but not included); bunsen burner; flamming time and height adjustable
  • LPG gas detector and the alarm system are included for safe operation; If the system detects the leakage, the gas delivery valve would be shut off automatically.
  • The sample testing stage with steel & aluminum screen to follow the UL 1624 section 19.3 testing standards
Power
  • AC 208 - 240 single phase 50/60 Hz
  • Maximum 500 W
Lithium batteries
  • Coin cells
  • Cylindrical cells
  • Pouch cells
  • Prismatic cells
Burning & Flamming
  • Gas: LPG; Liquefied petroleum gas is required but not included.
  • Burner: Bunsen burner with 9.5 mm diameter and 100 mm length
  • Automatic lighting
  • Flamming time: 0 - 999 seconds adjustable
  • Flamming height: 10 - 75 mm
  • Steel screen: 0.45 mm diameter; 20 mesh
  • Aluminum screen: 0.25 diameter; 16 mesh
Mobility
  • Four mobile wheels are installed at the bottom for easy transportation
Net weight & dimension
  • 357 kg (787.05 lbs)
  • 1,020 mm (L)  x 980 mm (W) x 1,865 mm (H)
Warranty
  • One-year limited manufacturer's warranty with lifetime support
  • Extended warranty available upon request at additional cost
Optional
  • High-resolution camera monitoring

  • Class D Lithium battery fire extinguisher
