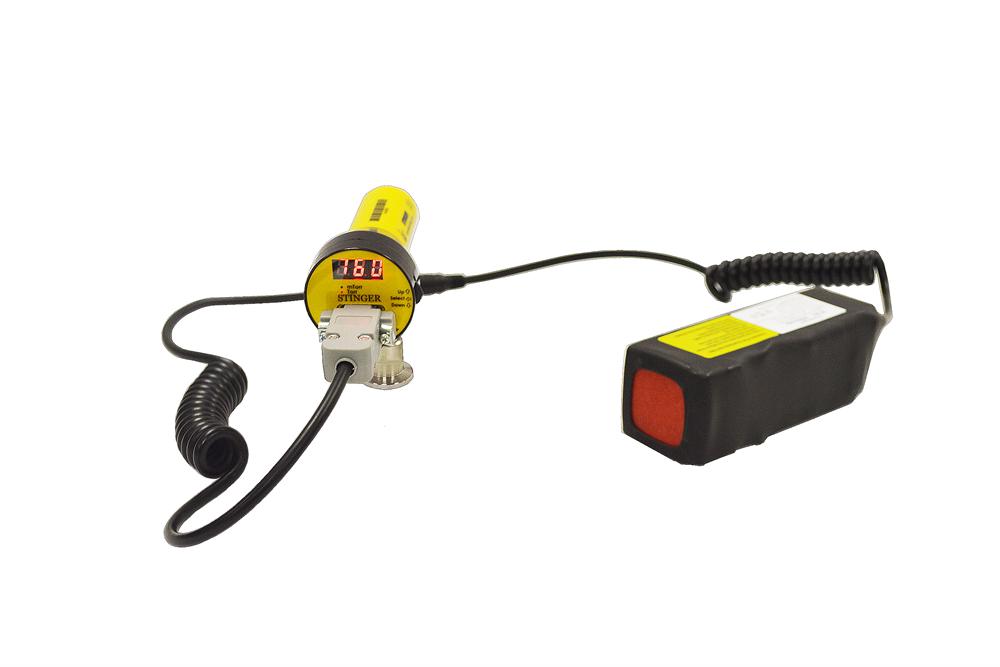

Battery Powered Vacuum Calibration Set with Smart Charger (2.8A) - EQ-VCS

EQ-VCS is a battery powered vacuum calibration set with a rechargeable battery and smart charger. The NIST traceable anti-corrosive digital vacuum gauge come with a 25.9V
Li-Ion Battery pack provide a easy solution to monitor or calibrate the vacuum pressure inside the vacuum storage chamber.

Complete Package includes	One Digital Vacuum Guage 25.9V Li-ion/Polymer Rechargeable Battery Pack Smart Charger (2.8A) for 25.9V Li-ion/Polymer Rechargeable Battery Pack
Vacuum Gauge Features	Convection enhanced Pirani vacuum gauge module with on-board controller. Wide measurement range 10-4 to 1000 Torr. Bright LED digital display with measurement unit torr /mtorr. Includes built-in digital display, set-point relay, analog output. 9 pins D connector and battery power supply.
Measurement Range (signal)	1x10E-4 to 1000 Torr click to see conversion of pressure unit
Display	3 digit LED from 999 Torr to 10.0 mTorr  2 digit LED from 9.9 mTorr to 1.0 mTorr 1 digit LED from 0.9 mTorr to 0.1 mTorr
Anti-Corrosive Materials	Platinum-plated tungsten
Operating Temperature	0 to +40ºC
Input Voltage	Vacuum gauge: 11 to 30 VDC Charger: 100- 240VAC, 50/60 Hz
Output Voltage	Charger: 29.4VDC Battery Pack: 25.9V (working)   29.4V ( peak)
Charging current	2.8A
Battery Capacity to use	>= 3650 mAh ( 94.5 wh)
Protection	Over-Voltage / Wrong Polarity Protection Built in IC to cut off power automatically when battery is fully charged at 29.4V
Dimensions	Digital Vacuum Gauge Dimensions: 104.7mm(L)x 48.3mm(W)x 32.0mm(H) Smart Charger Dimensions: 172mm(L) x 70mm(W) x 42mm(H) Battery Pack Dimensions: 142mm(L)x 48mm(W)x 52mm(H)
Weight	5Lb
Application Notes	During the charging process Must connect AC plug to the wall before connecting to battery pack. You must calibrate "Zero Point" under 10-4 Torr before measuring vacuum system from 10-4 - 10-3 Torr, otherwise, the gauge may not display accurately in that range. For detailed calibration procedure, please refer to the operation manual below. MTI can help customer finish the "Zero Point" calibration before shipping upon customer's special request at extra $100. Anti-corrosive version gauge can be used for aggressive gases such as Hydrogen sulfide, ammonia, etc.
Operation Manual
Certification	CE / UL Listed for Smart Charger  CE Certified for Vacuum Gauge UN38.3 Passed for Battery Pack
Warranty	One year limited with lifetime support for Vacuum Gauge 30 days for Battery Pack
