Battery Forced Internal-Short Circuit (ISC) Tester for IEC 62133.8.3.9, UL/TUV Ready - MSK-ISC

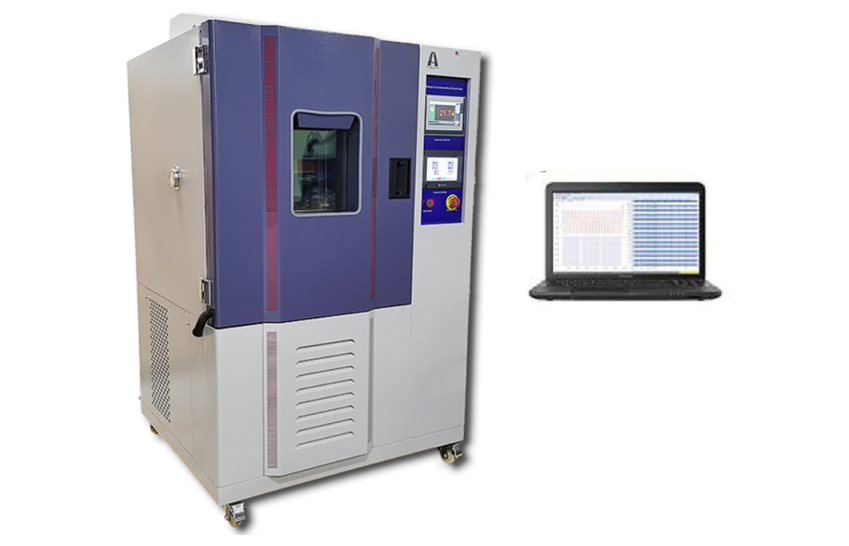

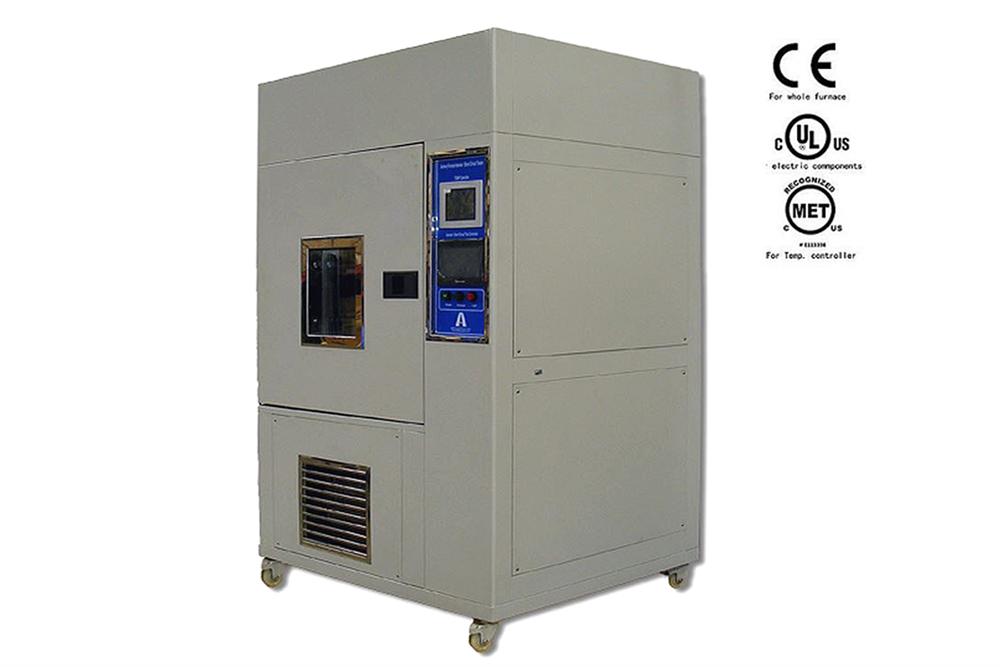

Temperature Control System & Testing Chamber

Features

• User-Friendly LCD touch screen panel
• 17 segments adjustable backlight
• RS-485 communication port
• 9 programable P.I.D temperature control segments
• EEPROM memory storage
• Built-in humidity sensor (±1%RH)

Outer Structure

Made of Cold Rolled Steel

Chamber Structure

• Double-layer steel chamber for anti-explosion
• Inside chamber:  made of 1 mm thickness cold rolled SS304  with tensile strength > 500 Mpa
• Outside casing:    made of 3 mm thickness annealed A3 steel with Tensile strength > 400 Mpa
•
• Dimension: 700×600×700 mm (W×D×H)

Working Temperature

• 0 +60

Temperature Fluctuation

±0.5

Temperature Uniformity

±2.0

Min. Temperature

0

Heating Rate

3/min

Cooling Rate

0.71/min

Chamber Dimensions

W600 X H750 X D500 MM

Overall Dimensions

W1800 X H1840 X D1030MM

Features

• Panasonic AC Driving System
• Pulse Command Control
• High precision forces sensor

• RS232 communication port
• Testing result can be saved as EXCEL format
• One brand new laptop with installed software are included for immediate use ( updated from April 13, 2015)

Power supply

208-240VAC, single-phase, 50- 60Hz
5000W

Max. Loading

1 N~1000N

Force Accuracy

?0.5F.S

Force Magnification

7 Segments Automatically

Movement Accuracy

?0.5F.S

Speed Range

0.1 ~ 5mm/s

Effective Travel Distance

150mm (without the clamp)

Space for Crushing Test

200mm W X 200mm L (without the clamp)

Voltage Collecting Range

 0—20V

Voltage Collecting Frequency

1000Hz

Voltage Resolution Ratio

1mV

• CE Certified
• All Electric parts are NRTL Certified and ready to pass UL/MET/ETL/CSA/TUV test at extra cost

Warranty

One-year limited warranty with lifetime support

• Disassembling the battery and placing the Nickel plate inside the battery must be operated under a glove box with humidity < 3.1 % RH  or Dew Point Temperature < -25°C.  Never open charged Li-Ion battery in air to avoid firing.
• L shape Nickel plate for the internal short circuit is available upon request (Pls click pic. 1-3 below to see where Ni-plate shall be placed).
• You may use our cylindrical battery cutter to disassemble charged cylindrical cell under a glove box  ( click  pic 4 bottom  to order)
•     Pic. 1     Pic. 2     Pic. 3           Pic.  4
