MTI  |  SKU: PLiB-NTA8

8mm Width Nickel Tab with Adhesive Polymer Tap as Negative Terminal for Pouch Cell, 50pcs/Box - EQ-PLiB-NTA8

€80,44

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

8mm Width Nickel Tab with Adhesive Polymer Tap as Negative Terminal for Pouch Cell, 50pcs/Box - EQ-PLiB-NTA8

MTI

8mm Nickel Tab with hot melt tape as Negative Terminal for Polymer Li-ion Battery   -- 50pcs/Box
  • Material: Nickel 99.99% (horizontal polymer strip is made of modified polypropylene (PP) and  polyethylene naphthalate (PEN))
  • Length: 60mm
  • Width: 8mm (other width is also availble upon request)
  • Thickness: 0.09mm
  • Polymer Size: 14.2 mm L* 4.7 mm W
  • Package:  50 pcs per box
  • Net Weight: 320mg/pcs
  • Gross Weight: 20g (Tabs with Box)
  • Max. Loading Current: 10A
  • Suggested Sealing Method (parameter below may vary from case to case):
  • Soft type heat-sealing blade (Blade with rubber, see MSK-140)
  • 180-200C for upper blade
  • 160-180C for lower blade
  • 40PSI (0.3Mpa)
  • 3 seconds heating time


Adhesive Polymer Tape is attached on the tab for immediate hot sealing

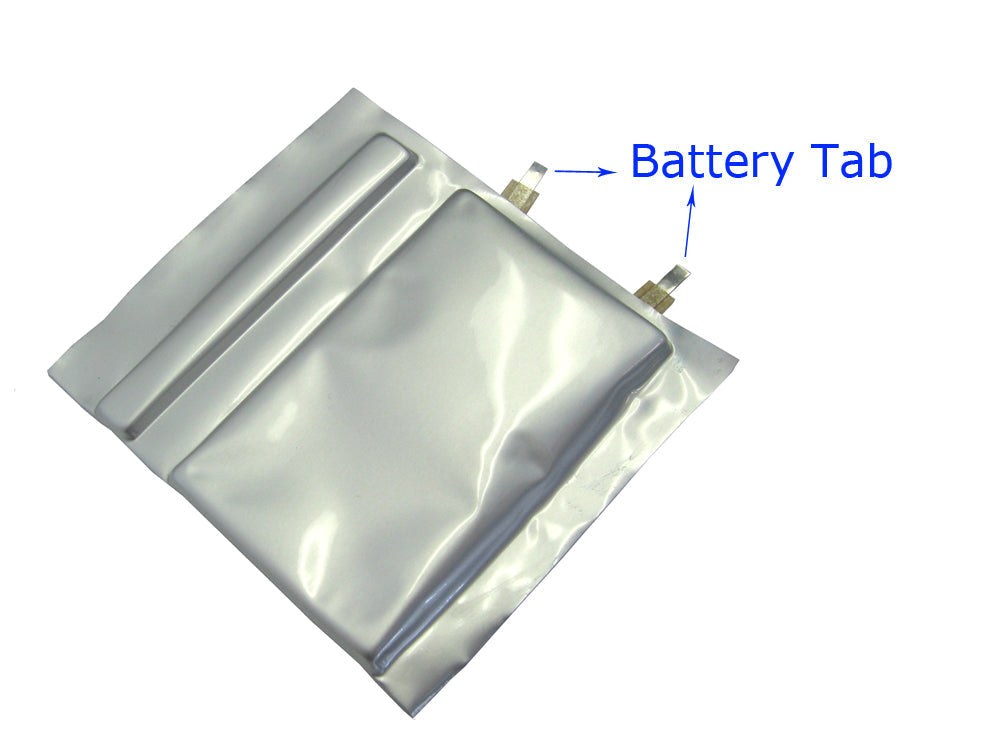

Click the picture below to see
polymer battery with tab:
 		Click below video to see how to weld the tab onto the current collector of the electrode:
 Click the link here to see MSK-800
Click the video below to see how to heat seal the tab onto the pouch cell case after the welding:

Click the link here to see MSK-140
