MTI  |  SKU: PLIB-ATC8

8mm Width Aluminum Tab with Adhesive Polymer Tap as Positive Terminal for Pouch Cell, 50pcs/Box - EQ-PLiB-ATC8

€68,98

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

8mm Width Aluminum Tab with Adhesive Polymer Tap as Positive Terminal for Pouch Cell, 50pcs/Box - EQ-PLiB-ATC8

MTI

8mm Width Aluminum Tab with Adhesive Polymer Tap as Positive Terminal for Pouch Cell,  50pcs/Box
  • Material: Aluminum 99.99% (horizontal polymer strip is made of modified polypropylene (PP) and  polyethylene naphthalate (PEN))
  • Length: 61mm
  • Width: 8mm
  • Thickness: 0.09mm
  • Application: Connect to cathode current collector as polymer battery positive terminal
  • Net Weight: 120mg/pcs
  • Gross Wight: 18g (Tabs with Box)
  • Max. Loading Current: 10A
  • Suggested Sealing Method (parameter below may vary from case to case):
  • Soft type heat-sealing blade (Blade with rubber, see MSK-140)
  • 180-200°C for upper blade
  • 160-180°C for lower blade
  • 40PSI (0.3Mpa)
  • 3 seconds heating time
  • Adhesive Polymer Tape is attached on the tab for immediate hot sealing

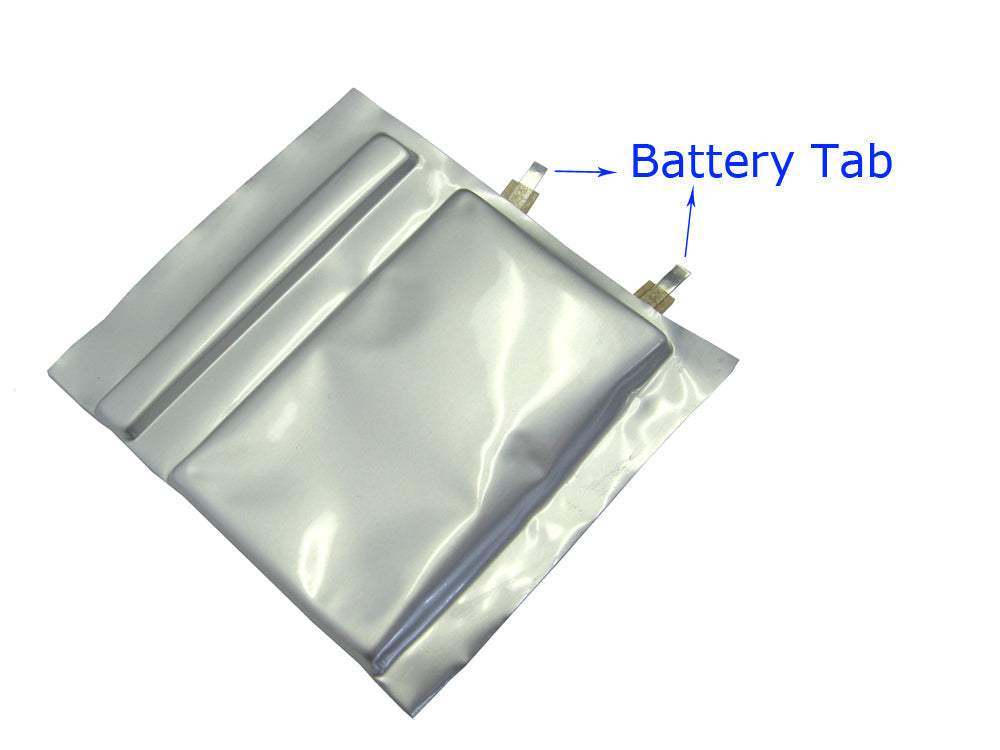

Click the picture below to see
polymer battery with tab:
Click below video to  see how to weld the tab onto the current collector of the electrode:
Click the link here to see MSK-800
Click the video below to see how to heat sealing the tab onto pouch cell case after the welding:
Click the link here to see MSK-140
