5-Side Heating Muffle Furnace (16x16x16", 64L, 1200C max.) w/ Dual Temp. Controllers - KSL-1200X-L5-UL

KSL-1200X-L5-UL is a five sides heating muffle furnace, which is designed for annealing super-alloy and precious metal with more uniform temperature zone and SiC sheet is installed on the bottom of the chamber which can load heavy samples up to 100 kg.

SPECIFICATIONS

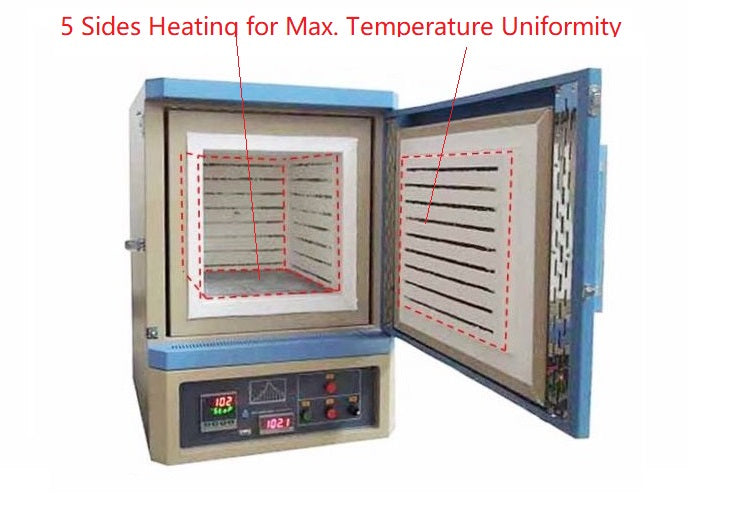

Structure	Five sides heating ( left, right, front, back, and bottom ) to achieve a more uniform temperature zone. One SiC sheet is placed on the bottom of the chamber ( top of the heating element ) to support heavy sample load up to 100 kg. Double temperature controller to ensure furnace never overshoots  Thermal-efficient ceramic (high-purity alumina fiber) insulation surrounding the chamber provides maximum energy efficiency.  Heavy-duty double-layer structure with a cooling fan to keep furnace exteriors safe to touch.  Built-in vent port removes undesirable contaminants and moisture; extends the life span of the heating elements and furnace.
Chamber Dimensions	16 " x 16'' x 16'' D x H x W (400 L × 400 W × 400 mm H) Capacity64 liters/ 4100 cubic inches/ 2.37 cubic ft
Power	9500 Watts Note Power cable included but without the plug. Please install a plug by your own or click the link left the picture to choose a plug according to your country or your lab requirement
Current Rating	45 A
Voltage	AC 208 - 240 Single phase, 50/50Hz
Operating Temp Range	100-1100°C-Max continuously 1200°C-Max under an hour Note: for using =>1000°C, the furnace block must be placed front chamber.
Stability at 1000oC	+/- 1°C
Uniformity at 1000oC	+/- 5°C @300°C and 1000°C in the center 300 × 300 × 300mm area
Max. Heating Rate	20°C/ min
Temperature Controller	FA-YD518P-AG temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port
Optional +/- 0.1ºC Controller	MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.  You may upgrade the temperature controller to the Eurotherm Temperature Controller which is fully compatible with LabVIEW and provide +/- 0.1ºC accuracy. This package includes a Eurotherm programmer, a communication cable (RS485 - USB), and a software CD. Click the pic below to view the full spec of the Eurotherm temperature controller.
Laptop, software & WiFi (Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use. Labview-Based Temperature Control System (EQ-MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces. A wireless remote control provides up to 300 meters of operating range. The above features are available upon request at an extra cost (up to $1,000).  Note: The software is only compatible with MTI’sTemperature Controller
Gas Inlet and Outlet	A 1/4'' Barbed Gas Inlet/Outlet is installed on the back of the furnace.
Overall Dimensions	750 L × 800 W × 1070 mm H
Shipping Weight & Dimensions	640 lbs 48" x 40"x 57"
Warranty	One-year limited warranty with lifetime support. ATTENTION: Any damages caused by the use of corrosive and acidic gasses are not under the coverage of MTI One Year Limited Warranty.
Compliance	CE Certified NRTL (UL61010) or CSA certification is available at extra cost.
Application Notes	This furnace is a vacuum-sealed furnace, toxic or explosive materials, and gasses are not recommended for use with this furnace without necessary safety controls and supervision.  Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. Optional  click here to choose a crucible Heavy duty cart for carrying on the furnace
