MTI  |  SKU: MSDCM500

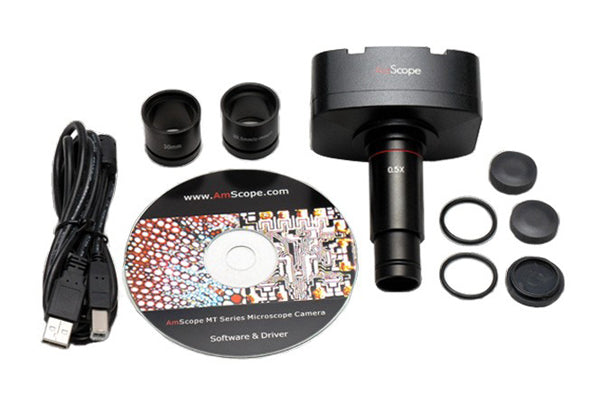

5.0M USB Microscope Live Video Photo Digital Camera EQ-MS-DCM-500

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

5.0M USB Microscope Live Video Photo Digital Camera EQ-MS-DCM-500

MTI

Overview
  • 5.0MP high quality high resolution color digital camera
  • Captures still images, records and streams live videos on PC or Apple computer
  • Advanced editing, processing and measuring software
  • Compatible with Windows XP/Vista/7/8/10, Mac OS X and Linux
  • Supports high quality print imaging in BMP, TIFF, JPG and RAW format.
Specifications:

  • Image Sensor: 1/2.5” Color CMOS (Micron)
  • Pixel Size: 2.2 micron x 2.2 micron
  • Hardware Resolution: 2592x1944 pixels
  • Imaging Resolution: 5.0 MP
  • File Format: BMP, TIFF, JPG and others
  • Frame Rate: 30 f/s @ 640x480, 8 f/s @ 2592x1944 pixels
  • Sensitivity: 0.53V/lux-sec @ 550nm
  • Speed: Low/high adjustable
  • White Balance: Auto/Manual
  • Exposure Time: 1ms to 0.3s
  • Exposure Control: Auto/Manual
  • Scan Mode: Progressive
  • Shutter: Electronic Rolling Shutter
  • S/N Ratio: 40.5 dB
  • Dynamic Range: 60 dB
  • Filter: RGB Bayer Pattern
  • Parameter: Gain (1~40), Gamma (0.1~2.50)
  • Mount: 23mm Photo Port, C CS-Mount (Ring Adapter Included)
  • Camera Body: Cast Aluminum
  • Power Supply: Via USB 2.0 connector
  • System Required: Windows 2000/XP/Vista/7/8/10 and Mac OS 10.6 & up
    with USB 2.0 port
  • Dimension: 2.5" x 3-3/8" x 1-7/16" (65 x 86 x 37 mm)
  • Net Weight: 0.48 lbs (220g)
  • Shipping Weight: 2 lbs
