MTI  |  SKU: PLIB-ATC4

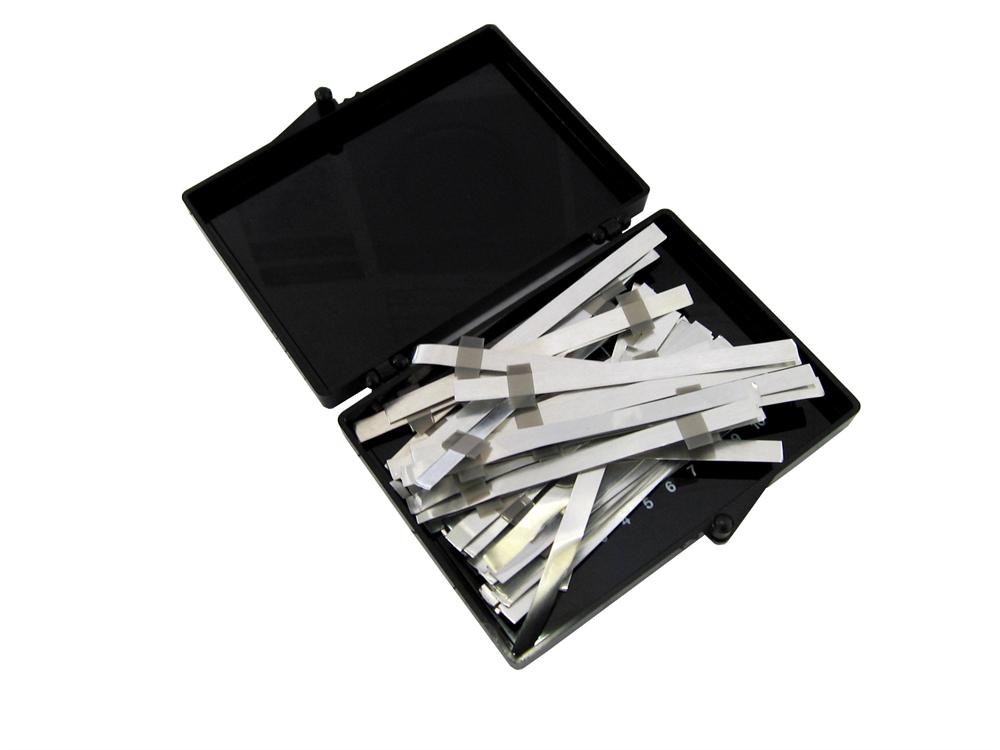

4mm width Aluminum Tab with Adhesive Polymer Tape for Positive Terminal of Pouch Cell, 50pcs/Box - EQ-PLiB-ATC4

€53,99

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

4mm width Aluminum Tab with Adhesive Polymer Tape for Positive Terminal of Pouch Cell, 50pcs/Box - EQ-PLiB-ATC4

MTI

4mm wide Aluminum Tabs for use as the Positive Terminal of Polymer Li-ion Batteries    50pcs/Box

Specification
Material Aluminum 99.99% (horizontal polymer strip is made of modified polypropylene (PP) and  polyethylene naphthalate (PEN))
Length 61mm
Width 4mm
Thickness 0.09mm in Aluminum Tab
0.28mm in Aluminum Tab with Adhesive Polymer Tape
Max. Loading Current 3A
Net Weight 60mg/pcs
Gross Wight 15g (Tabs with Box)
Pre-taped Adhesive Polymer Tape on the tab allows for immediate hot sealing
Height of Tape Area: 4.30 mm +/- 0.50 mm
Application 1. Connect to cathode current collector as polymer battery positive terminal
2. Suggested Sealing Method: (parameter below may vary from case to case)
    - Soft type heat-sealing blade (Blade with rubber, see MSK-140)
    - 180-200C for upper blade
    - 160-180C for lower blade
    - 40PSI (0.3Mpa)
    - 3 seconds heating time
Adhesive Polymer Tape on the tab allows for immediate hot sealing

Manual & Video
polymer battery with tabs VIDEO on how to weld the tab VIDEO on how to seal the battery w/ tab
