MTI  |  SKU: DF0403

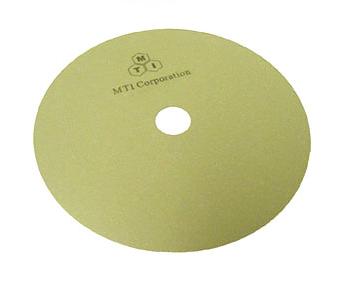

4"Dia x 0.014"(0.35 mm) thick x 0.5" Arbor Sintered Full Diamond Cutting Blades (Fine grade 40 micron) - EQ-DF0403

€205,85

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

4"Dia x 0.014"(0.35 mm) thick x 0.5" Arbor Sintered Full Diamond Cutting Blades (Fine grade 40 micron) - EQ-DF0403

MTI

MTI supplies high-quality sintered diamond blades for precision cutting or dicing of various oxide crystals. MTI diamond blade is hot pressed and sintered by full diamond powder which has a five times longer service life than that of ordinary edge sintered diamond blades. The full diamond sintered blade is suitable for low-speed cutting ( under 1000 RPM) of oxide single crystals or any brittle crystals, especially for cutting plastics, polymer components, metals, alloys, and bones. It is perfect to match MTI 150 low-speed saw or other brands of low-speed saw.

SPECIFICATIONS:

Part Number DF-0403
Blade Diameter 100 mm  +/ -0.5 mm
Blade Thickness 0.35 mm +/ -0.005mm
Arbor 0.5"
Diamond Particles Grit 280 mesh ( 40 microns)
Note  If you try to cut non-ferrous metal or alloy, please choose coarse (63 microns ) diamond blade at related product below
