40T Electric Hydraulic Press with Optional Heating Die (250C Max) for Cold Sintering Process - YLJ-CSP-40TA

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

40T Electric Hydraulic Press with Optional Heating Die (250C Max) for Cold Sintering Process - YLJ-CSP-40TA

MTI

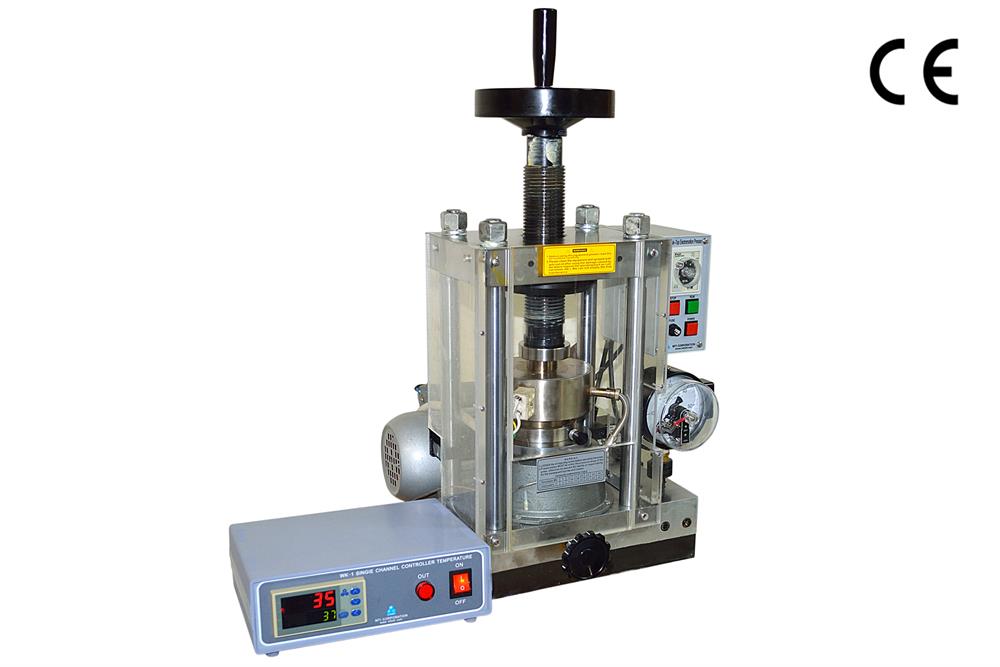

YLJ-CSP-40TA is a 40 T max. electric hydraulic press with heatable uniaxial dies up to 250 ºC max. It is designed for the cold sintering process (CSP) of ceramic, polymer, or ceramic-polymer composite materials for applications such as microwave dielectric materials, solid-state electrolyte, and semiconductor. The press has a built-in electric hydraulic pump with an automatic pressure limit switch and warning timer.

Reference:
Application Note: Preparation of LAGP Sheets by Cold Sintering Process (CSP) using YLJ-CSP-40A
Cold Sintering: A Paradigm Shift for Processing and Integration of Ceramics
Cold Sintering Process of Composites: Bridging the Processing Temperature Gap of Ceramic and Polymer Materials

SPECIFICATIONS:

Working Pressure Range
  • 0~40 Metric Tons
Gauge Pressure Value to Force Conversion
Gauge Displayed Pressure Value (MPa)
 5.6    11.4 17     22.8  28.4  34    39.8  45.4
Actual Force Applied on the Hydraulic Cylinder (Ton) 5    10     15     20    25 30 35 40
Actual Pressure Applied on 0.5" ID Die (MPa) 387 774 1161 X X X X X
Actual Pressure Applied on 1.0" ID Die (MPa)
145  290 387 484  580  676 774
Actual Pressure Applied on 1.5" ID Die (MPa)      129 172 216 259 302 345
Actual Pressure Applied on 3.0" ID Die (MPa) 43 54 64 75 85
  • Notes:
  • Displayed Pressure Value to Actual Applied Force Conversion: 1 MPa = 1 Ton
  • The actual force applied to the Hydraulic Cylinder (Ton) equal to the force applied on your working piece
  • For calculating the actual pressure (MPa) applied on your working piece, please follow the equations in below:
  •           P = (T x g x 10) / (?r^2)
    • P: Pressure (MPa) applied on your working piece
    • T: Force (Ton) applied to the Hydraulic Cylinder
    • g: Standard gravity. g ? 9.8 m/s2
    • ?: ~3.14
    • r: Radius (cm) of the working piece
    • *1 Metric Ton = 1000 kg; 1 MPa ? 10 kgf/cm2
Pressure Accuracy
  • ± 0.5MPa in high pumping speed
  • ± 0.1MPa in low pumping speed
Heatable Dies
  • Please select 0.5", 1.5" or 3" ID heatable dies from the Product Options
  • High Strength tool steel with hardness >RC60
  • Optional:  Die with electric insulating BN liner is available at extra cost for researching sample's conductivity vs pressure
  • ?
Working Temperature Range
  • 50 - 200 ºC   ( if use the transparent cover )
  • 50 - 250 ºC    (if removing the transparent cover)
Temperature Control
  • 30 segments programmable digital temperature controller with overheating protection
  • PID auto-tune function with +/- 1 ºC stability
Power
  • Standard: 208  VAC (single-phase). 180 W power (electric press)
  • Optional: Please order a 1000W 110V-220V transformer for using under 110 V

Electric Hydraulic Pump
&
Optional
  • Pressure gauge with built-in pre-stable pressure switch (accuracy +/-0.5% FS)
  • Pressure load will automatically stop when the pressure reaches the pre-setting point
  • Built-in timer for warning
  • You may choose a 30T electric hydraulic pump with pressure maintaining function for more precise pressure control at extra cost or a manual 24T or 40T manual press at a lower cost (Please contact MTI for more details)
  • For inside glove box operation with an inert gas atmosphere, please choose the compact 15T manual hydraulic CSP press YLJ-CSP-15 (Click left picture to order)
Bottom Hydraulic Cylinder Travel Distance
  • 0 - 16 mm
Top Support Screw Adjustable Height
  • 170 mm
Hydraulic Cylinder Diameter
  • 80 mm
Heatable Die Dimension
Machine Dimensions
  •
Net Weight
  • 100 kg
Warranty
  • The pressing machine was quality inspected in the USA, lifetime support is provided
  • One year limited standard warranty (Extended warranty is available up to 5 years at extra cost)
Compliance
  • CE Certified
