MTI  |  SKU: PLIB-NTA3

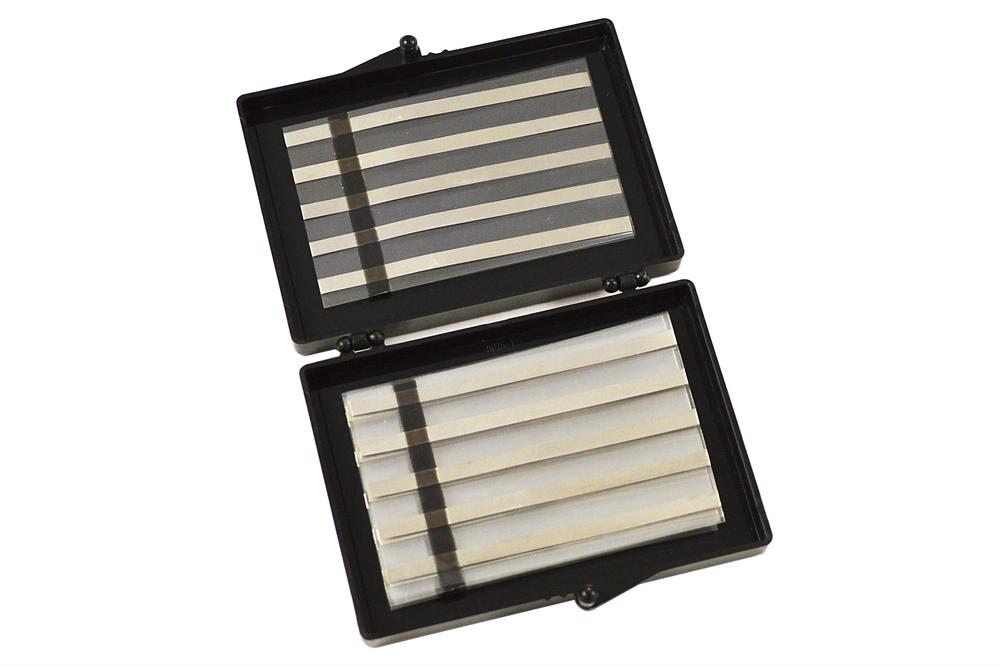

3mm Width Nickel Tab with Adhesive Polymer Tape for Pouch Cell Terminal 40pcs/Box - EQ-PLiB-NTA3

€29,84

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

3mm Width Nickel Tab with Adhesive Polymer Tape for Pouch Cell Terminal 40pcs/Box - EQ-PLiB-NTA3

MTI

3mm Width Nickel Tab as Negative Terminal for Polymer Li-ion Battery, 40pcs/Box

Material: Nickel 99.99% (horizontal polymer strip is made of modified polypropylene (PP) and  polyethylene naphthalate (PEN))
Length: 60mm ±1.0
Width: 3mm ±0.1
Thickness: 0.1mm ±0.015 in Nickel Tab
                  0.28mm in Nickel Tab with Adhesive Polymer Tape
Adhesive Polymer Tape is attached on the tab for immediate hot sealing (Size: 8 mm L * 5 mm W * 0.1 mm Thickness)
Application: Connect to anode current collector as polymer battery negative terminal
Net Weight: 160mg/pcs
Gross Weight: 19.01g (Tabs with Box)
Max. Loading Current: 3A
Suggested Sealing Method (parameter below may vary from case to case):
  • Soft type heat-sealing blade (Blade with rubber, see MSK-140)
  • 180-200C for upper blade
  • 160-180C for lower blade
  • 40PSI (0.3Mpa)
  • 3 seconds heating time




Click the picture below to
see polymer battery with tab:
 Click below video to see how to weld the tab onto the current collector of the electrode:

Click the link here to see MSK-800
Click the video below to see how to heat sealing the tab onto pouch cell case after the welding:
Click the link here to see MSK-140
