280C Max Hot Dry Pellet Pressing Die (Carbon Steel) with Temperature Controller (Ar Glovebox Compatible) - EQ-HC-D

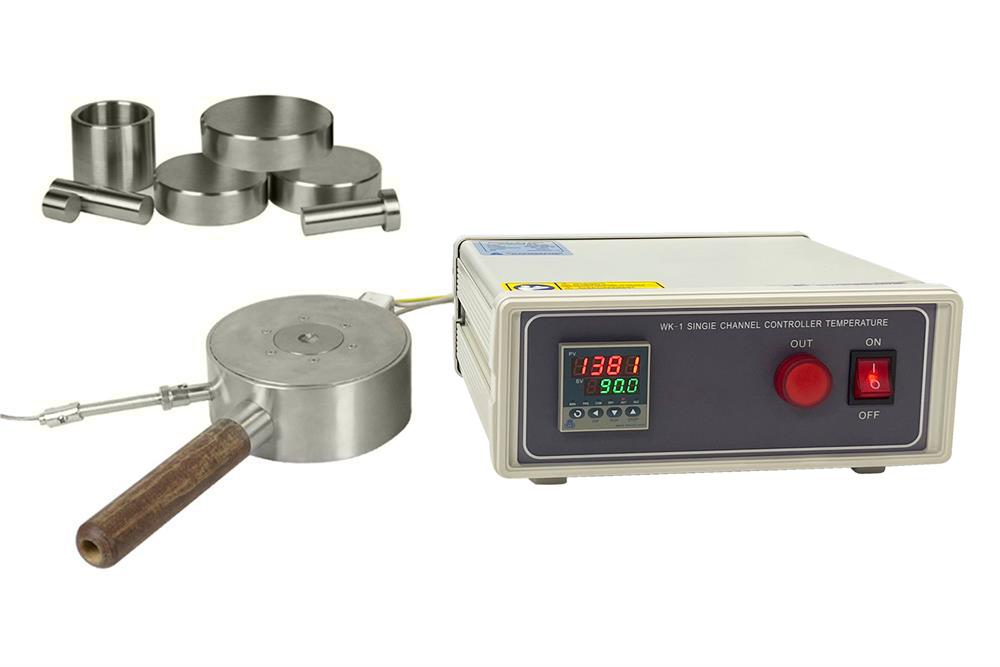

EQ-HC-D heatable die contains 0.5",1.5" or 3.0'' I.D dry pellet pressing die set and heating jacket (Max. 280 ºC) with a digital temperature controller. A wooden handle is attached for easy handling.

SPECIFICATIONS:

Model	EQ-HC-025D	EQ-HC-05D	EQ-HC-075D	EQ-HC-15D	EQ-HC-30D
Product structures	Including one set of 0.25"(I.D.) Dry Pressing Die: 6 metric Ton Max Load.	Including one set of 0.5"  ( I.D. ) Pressing Die: 10 metric Ton Max Load.	Including one set of 0.75"  (I.D.) Pressing Die: 12 metric Ton Max Load.	Including one set of 1.5" ( I.D. ) Pressing Die: 16 metric Ton Max Load.	Including one set of 3.0"( I.D.)  Pressing Die: 16 Ton Max Load.
Product Dimensions
Hardness	> HRC 60
Roughness Average (Ra)	0.08 ?m
Voltage	AC 220V 50/60Hz (To use AC 110V, please order a 500W transformer ) 220V AC Power plug is not included. Please click here to order the plug)
Working Temperature Range	50-280 ºC
Temputerature Control Method	Single-point digital temperature controller Type-K thermocouple
Steps to Make Sample Pellet	Mixing and grinding chemical powder by agate mortar or Ball Mill. Calcine mixed the powder in a high temp furnace under a suitable temperature. Crushing and Grinding calcined powder again by mortar or ball mill. Put calcined powder into the die. Pressing sample by a pressing machine under suitable pressure. Take out pellet samples from the die. Sintering the pellet under a suitable temperature. The sample is ready.
Installation	This pressing die can also be used in YLJ-15L Hydraulic Press without the protective cover.
Operation Instructions
Cautions	Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps. Please clean the mold via ethanol after the completion of each experiment. Please use ethanol to clean the pressing die every time before use. Store it in a dry environment with antirust oil after the operation to avoid rusting.  No warranty for rushing. For pressing sticky metal powders such as Al, Mg, Zn, it is necessary to use dry or alcohol-based tool lubricant to lubricate the die and sleeve set to reduce friction during the compression.  You may consider using BN coating (EQ-BNMR) for easy mold release. Please click the picture below to order.
