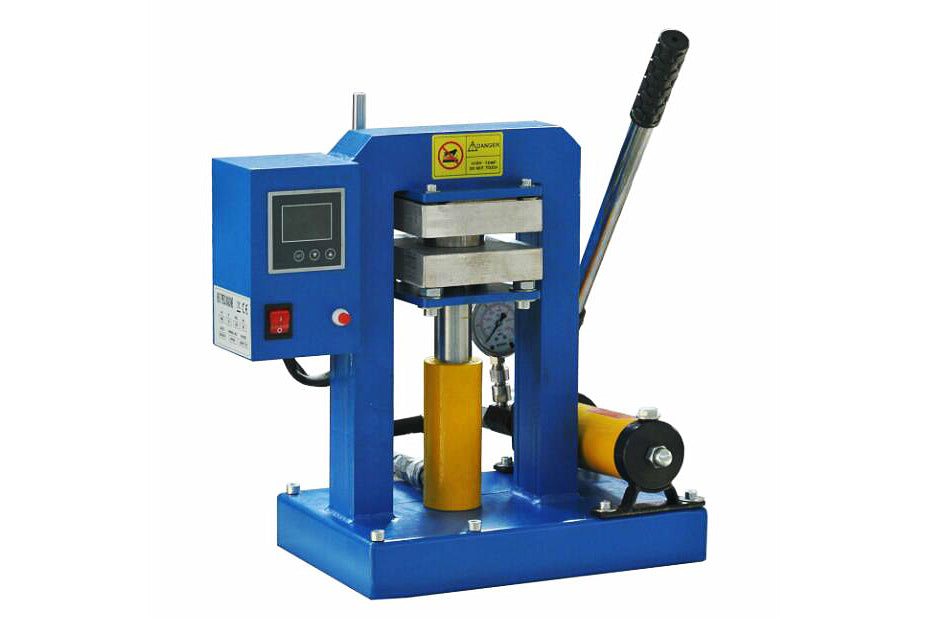

YLJ-HP60-LD (updated from YLJ-HP-6T-LD) is 200°C Max. compact lamination hot press consists of 6 metric ton hydraulic press with two heated platens (120x120mm area). The temperatures of the heated platens are controlled by a digital temperature controller up to 200°C. The hot press is designed for preparing electrode & electrolyte of solid and flexible lithium battery.

SPECIFICATIONS:

Feature

  • Two heating platens are controlled by a digital temperature controller up to 200°C
Heated Platen
  • Platen Area: 120mm x 120mm
  • Made of Aluminium alloy with the inserted heating element
  • Warning: Please don't press a small area die directly against the soft Aluminium alloy surface. You may add a hard steel plate on top and bottom  if press a small diameter die

Max. Working Temperature
  • 200°C Max. (<30 minutes)
  • 100°C continuous
Temperature Control
  • The single set point digital controller is installed in the control cabinet
  • Temperature accuracy ±1°C

Max. Working Pressure
  • 6 Metric Ton (Note: the machine base must be secured to an unmovable & solid table before operation)

Max. Opening
  • ~2 inches between two heating plates

Gauge Pressure Value to Force Conversion

Gauge Displayed Pressure Value (Mpa)

6

12

18

24

30

36

Actual Force Applied on the Hydraulic Cylinder (Ton)

1

 2 3 4

5

6
  • Notes:
    • The actual force applied to the Hydraulic Cylinder (Ton) is equal to the force applied to your working piece
    • For calculating the actual pressure (MPa) applied to your working piece, please follow the equations below:
  • P = T/(?r^2) x g x 10
    • P: Pressure (MPa) applied to your working piece
    • T: Force (Ton) applied to the Hydraulic Cylinder
    • g: Standard gravity. g ? 9.8 m/s2
    • ?: ~3.14
    • r: Radius (cm) of the working piece
    • *1 Metric Ton = 1000 kg; 1 MPa ? 10 kg/cm2

Power Requirement
  • 110VAC or 220VAC +/-10%, 50/60Hz, single-phase (please select the voltage in the selection bar)
  • 1200 W max,15A circuit breaker is required

Option
  • Upgrade to Digital Pressure Gauge (100Kp to 60Mp) with $600 extra (Pic.1 & 2)
  • We may install a digital load cell between the hot plate and hydraulic cylinder ( click Pic. 3 & 4 to order)
           Pic. 1   Pic. 2     Pic. 3 Pic. 4

Compliance
  • CE Certified
  • UL / CSA Certification is available upon request at extra cost

Machine Dimensions



Shipping Dimensions

  • 40" x 26" x 30" (L x W x H)

Shipping  Weight

  • 120 lbs

Operation Instructions



Warranty
  • One-year limited standard warranty (Extended warranty is available for up to 5 years at an extra cost)
  • Please note that small pores (<1.5 mm dia) may appear at the surface of the platens due to the process of die-casting aluminum, which is not covered by the warranty.
