MTI  |  SKU: KSL-1700X-GS216

1700C Max. Bottom Loaded Inert Gas Atmosphere Box Furnace, (24x24x24", 216L) - KSL-1700X-GS216

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

1700C Max. Bottom Loaded Inert Gas Atmosphere Box Furnace, (24x24x24", 216L) - KSL-1700X-GS216

MTI

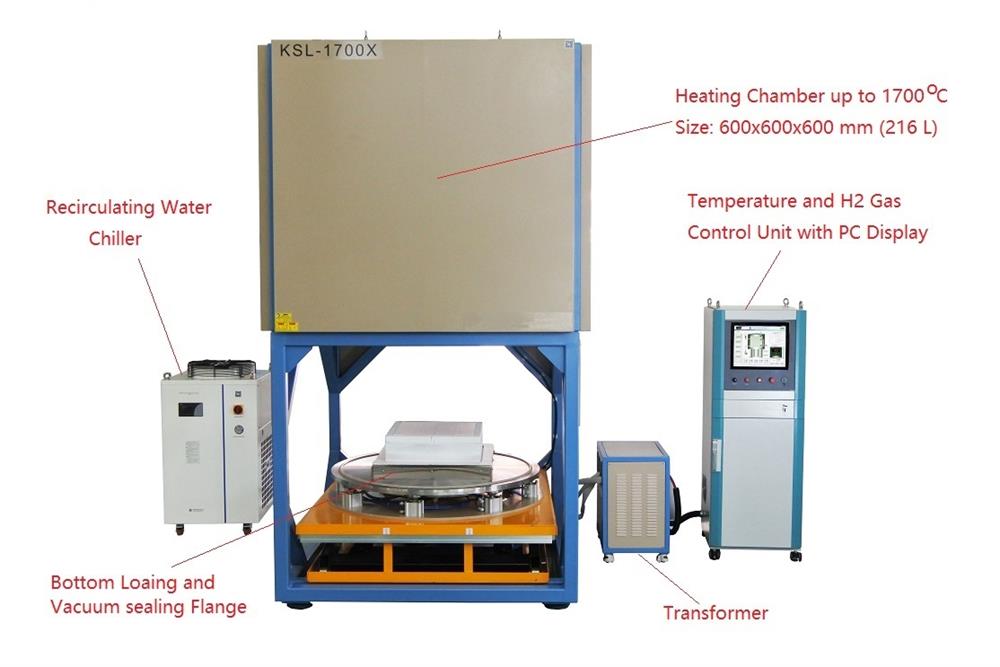

KSL-1700X-GS216 is a bottom loading larger box furnace ( 216 Liter capacity) with inert gas atmosphere control up to 1700 ºC. The furnace consists of high-quality alumina fiber bricks and Molybdenum alloy heating elements with 24"x24"x 24" heating chamber. A vacuum-sealed steel chamber with a water cooling jacket as well as the vacuum & gas flow control system enables material processing under inert gas atmosphere.

SPECIFICATIONS

Furnace Structure
  • Double-layer stainless steel structure for maximum safety
  • The bottom loading mechanism by electric hydraulic lift which can hold 200 Kg Max. sample
  • Water cooling front door and sealing jacket for max. service life.
  • Touch-screen digital control panel for all parameters.
  • Precision temperature control with +/- 3ºC uniformity inside the chamber and +/-1°C accuracy.
Inside Chamber Size
  • Heated chamber: 600 x 600 x 600 mm ( ~ 24" x 24" x 24" . 216 Liter capacity )
  • Energy-saving 1800-grade fibrous alumina insulation.
  • High-purity Al2O3 coating.

Power
  • AC 460V three-phase; 50/60 Hz
  • 50 KW
  • 63Amp 100Aair-breaker

Heating Element
  • 12 Pcs Mo heating element

Continuous Working Temperature

1600°C

Maximum Working Temperature

1700°C (< 1 hr)

Heating Rate

5°C / min

Temperature Accuracy

+/- 0.5°C

Thermocouple

two B-type thermocouples (control thermocouple and secondary alarm thermocouple)

Temperature Control
  • Eurotherm controller with PID automatic control via SCR (Silicon Controlled Rectifier)
  • 30 programmable segments for precise control of heating/cooling rate and dwell time.
  • Over-temperature protection and thermocouple failure alarm functions allow operation without attendant(s).
  • +/- 0.5ºC temperature accuracy.
  • RS485 Communications Port

Gas Flow Control and

Vacuum Valve
  • Two flow meters (#1: 0~8L/min; #2: 0~4L/min) are installed on the front panel of the furnace.
  • One heavy-duty vacuum pump (CE certified) is built on the bottom of the furnace.
Water Cooling
  • A 16L/min recirculating water chiller is installed in the bottom of the furnace for cooling the furnace sealing flange (CE certified only)
  • MET Certification (UL 1450) for water chiller is available upon request at extra cost, please contact our sales representatives for a quote.

Net Weight
  • 3000 Kg

Dimensions

Furnace               Control Unit       Transformer

Compliance
  • CE Certified for the furnace, vacuum pump, and water chiller.
  • NRTL (UL61010) or CSA certification is available at extra cost.

Application Notes

Warnings
  • ATTENTION: Any damages caused by the use of corrosive and acidic gasses are not under the coverage of MTI One Year Limited Warranty.
  • In order to prevent oxidation/corrosion damages to the Mo heating elements, it is necessary to keep a constant inert gas (Ar preferred) flow throughout the entire process. This is the most effective way to carry out any by-products.
