1700°C Rocking Tube Furnace with 60mm OD Alumina Processing Tube - GSL-1700X-RC

MTI

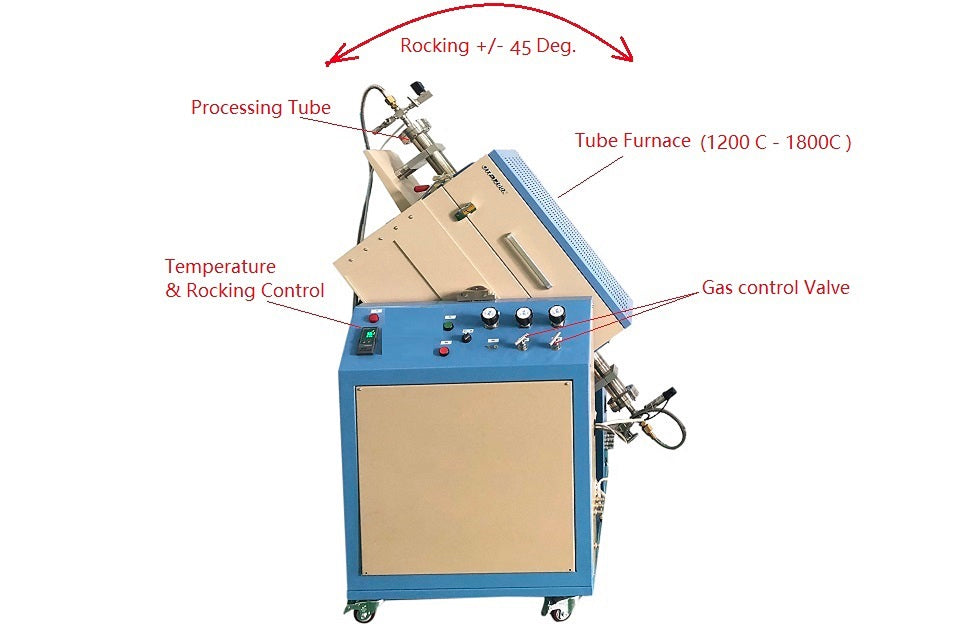

GSL-1700X-RC is a high-temperature rocking tube furnace up to 1700ºC. The processing tube is made of a 2" ID alumina tube. The rocking mechanism can drive the furnace swing +/- 45º  from right to left at variable speed.   It is designed for processing materials under controlled atmosphere gas at high temperatures to achieve more uniform composition.

SPECIFICATIONS

Furnace
  • Double-layer steel casing with air cooling to keep the case temperature < 60oC.
  • High purity fibrous alumina chamber with max energy saving.
  • Alumina tube, vacuum flange, gauge & valves are included.
  • 1800 grade MoSi2 Heating Elements allows 1700C operation
  • Precision temperature control with +/- 1oC accuracy

Power
  • AC 208 - 240V 50/60Hz, single-phase
  • 3.0 KW (20A breaker required)


Working Temperature
  • Max. Temperature: 1700 °C  (< 2 hr
  • Continuous working temperature: 1600°C
  • Max. Heating Rate: 10°C /min

Temperature Control


(optional Eurotherm)
  • One FA-YD518P-AG temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • THE Default RS485 PC port for PC operation and operation software is included.
  • You may upgrade the temperature controller to the Eurotherm 3000 Series Temperature Controller with +/- 0.1 ºC accuracy.

Heating Zone
  • Heating Zone Length: 12" (300mm)
  • Constant Temperature Zone:  (80mm)  within +/- 1ºC

Processing Tube


  • Hight purity ( >99/5%) alumina tube.
  • 54 mm (I.D) x 60 mm (O.D) x 800 mm length.

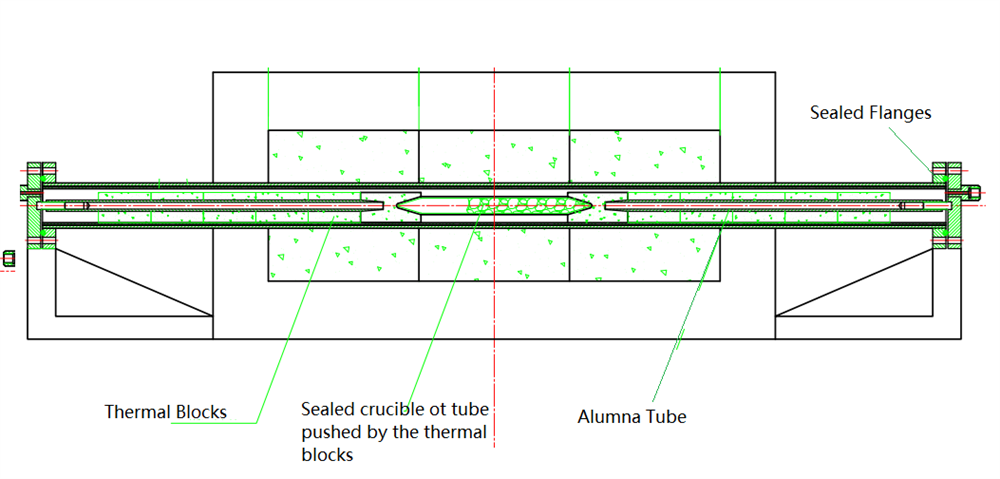

  • The fibrous ceramic tube blocks are included for blocking heat radiation and fixing the crucible without moving.   We can make customized the length of blocks for you like the below picture right.

Vacuum Flange

  • Two choices of stainless steel flange with vacuum gauge and valves
  • 2" default flange with 1/4'' Bard fittings, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum portclick bottom right picture to see details )
  • Both flanges may change into 3/8" barbed hose fittings
  • You may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting x 1/4" BSPP Male

Vacuum Pressure
  • 50 m-torr can be achieved by a mechanical pump
  • 10^-5 torr can be reached by turbopump
  • Please click the picture below to order a vacuum pump.


Rocking  Station
  • Gear DC motor, 150W  drives the furnace in the center
  • LCD digital display with adjustable speed from 10 - 70 RPM
  • Rocking angle:  +/- 45º  Max. adjustable.  (90º is available upon request )
  • Rocking frequency:    0.1 - 1 time per minute adjustable
  • Rocking Timer: 1-1199 min or continuous running

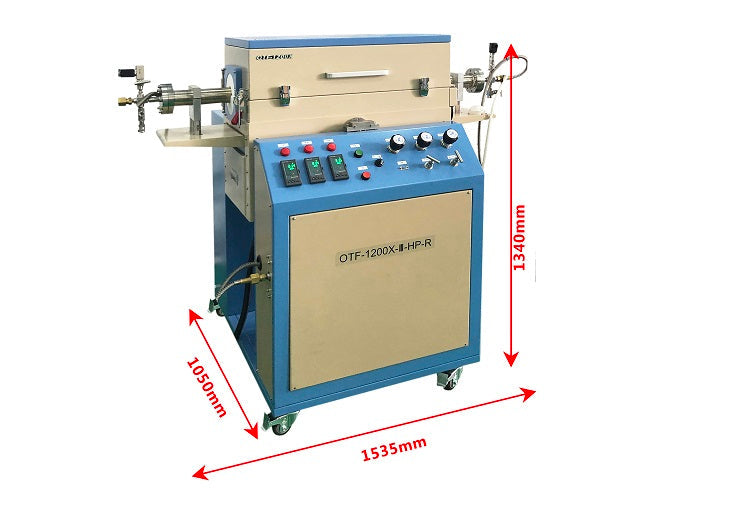

Dimension

Shipping Weight

300 lbs

Warranty
  • One-year limited warranty with lifetime support
  • (Consumable parts such as processing tubes, and O-rings are not covered by the warranty, please  order replacements at related products below.)
Compliance


  • CE Certified
  • NRTL (UL61010)  or CSA certification is available at extra cost
