MTI  |  SKU: PLIB-ATC15

15mm Width Aluminum Tab with Adhesive Polymer Tap as Positive Terminal for Pouch Cell, 50pcs/Box - EQ-PLiB-ATC15

€162,33

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

15mm Width Aluminum Tab with Adhesive Polymer Tap as Positive Terminal for Pouch Cell, 50pcs/Box - EQ-PLiB-ATC15

MTI

15mm Width Aluminum Tab with Adhesive Polymer Tap as Positive Terminal for Pouch Cell,  50pcs/Box
  • Material: Aluminum 99.99%

  • Dimension Detail:
    • A: 44 ±0.5mm
    • B: 8 ±0.25mm
    • C: 8 ±0.5mm
    • D: 15 ±0.01mm
    • E: 4 ±0.25mm
    • Thickness (T1): 0.35 ±0.03mm
    • Thickness(T2): 0.15 ±0.1mm
  • Application: Connect to cathode current collector as polymer battery-positive terminal
  • Net Weight: 0.39 ±0.1g/pcs
  • Gross Weight: 22.55 ±0.2g (Tabs with Box)
  • Suggested Sealing Method (parameter below may vary from case to case):
  • Soft-type heat-sealing blade (Blade with rubber, see MSK-140)
  • 180-200°C for the upper blade
  • 160-180°C for lower blade
  • 40PSI (0.3Mpa)
  • 3 seconds heating time
  • Adhesive Polymer Tape is attached to the tab for immediate hot sealing

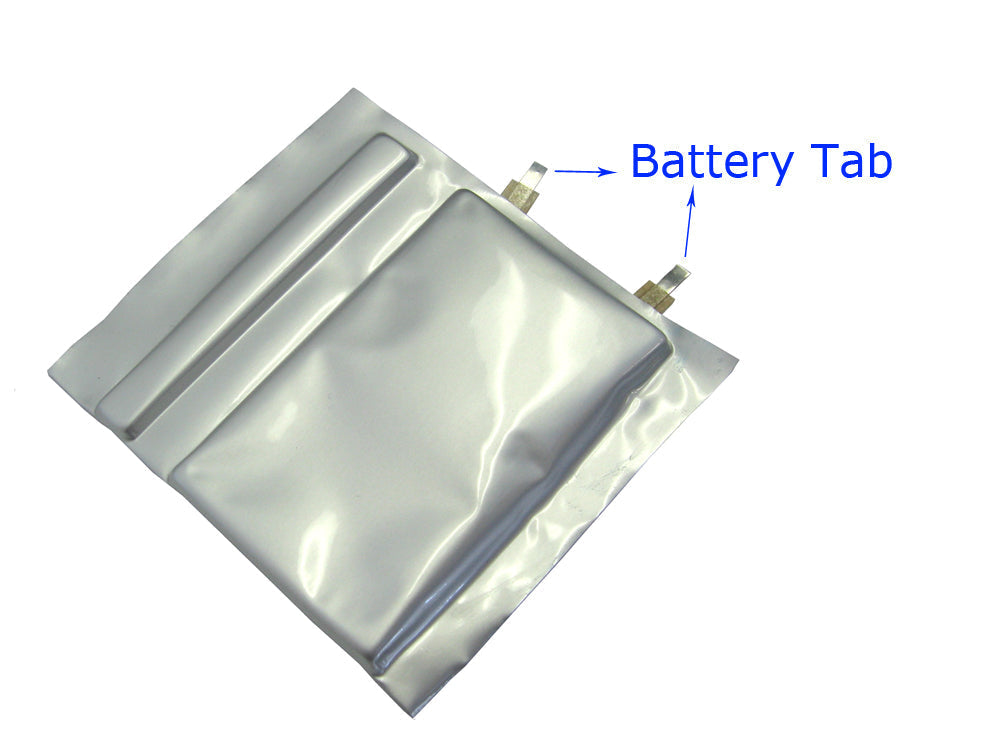

Click the picture below to see
polymer battery with tab:
Click below video to  see how to weld the tab onto the current collector of the electrode:
Click the link here to see MSK-800
Click the video below to see how to heat sealing the tab onto pouch cell case after the welding:
Click the link here to see MSK-140
