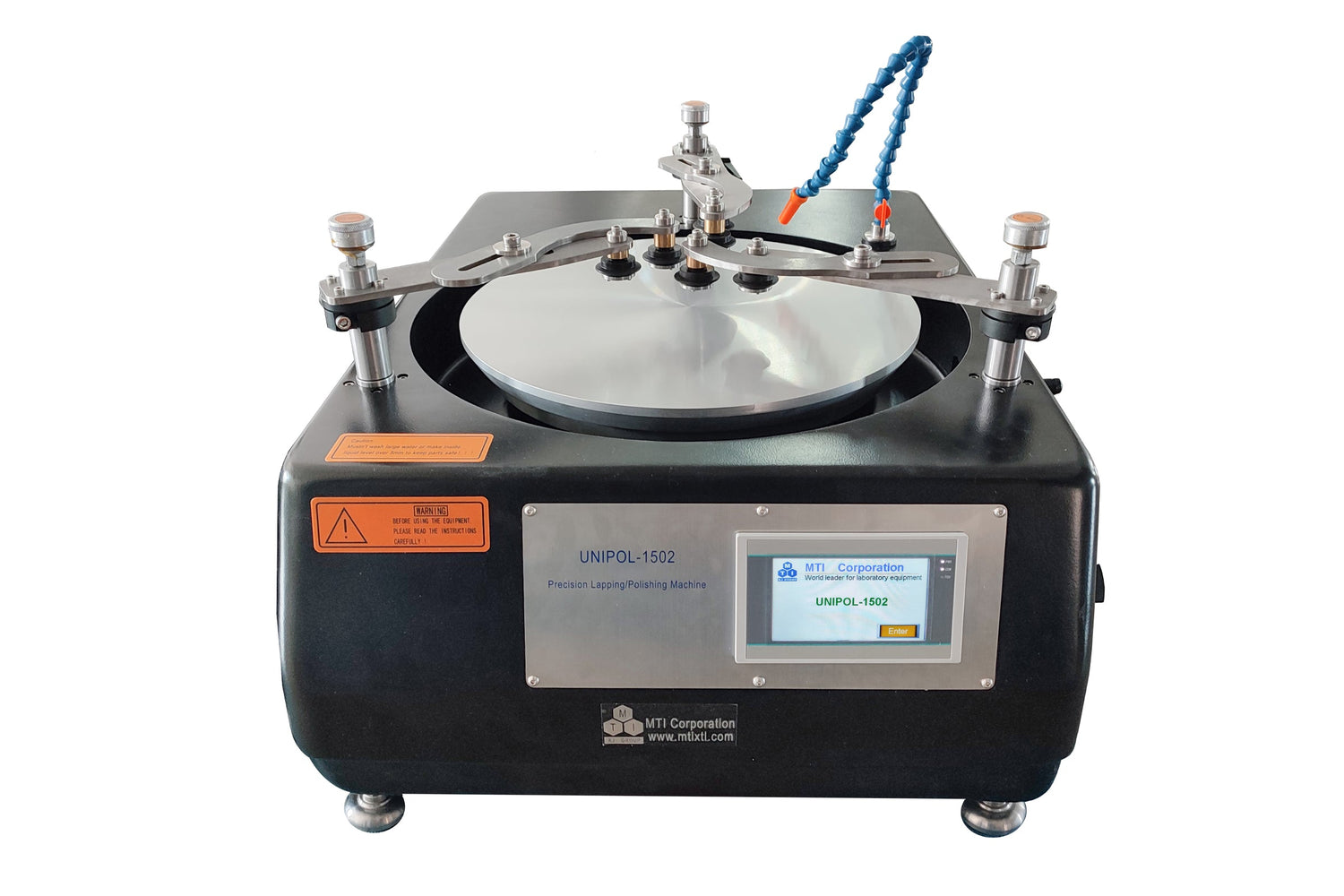

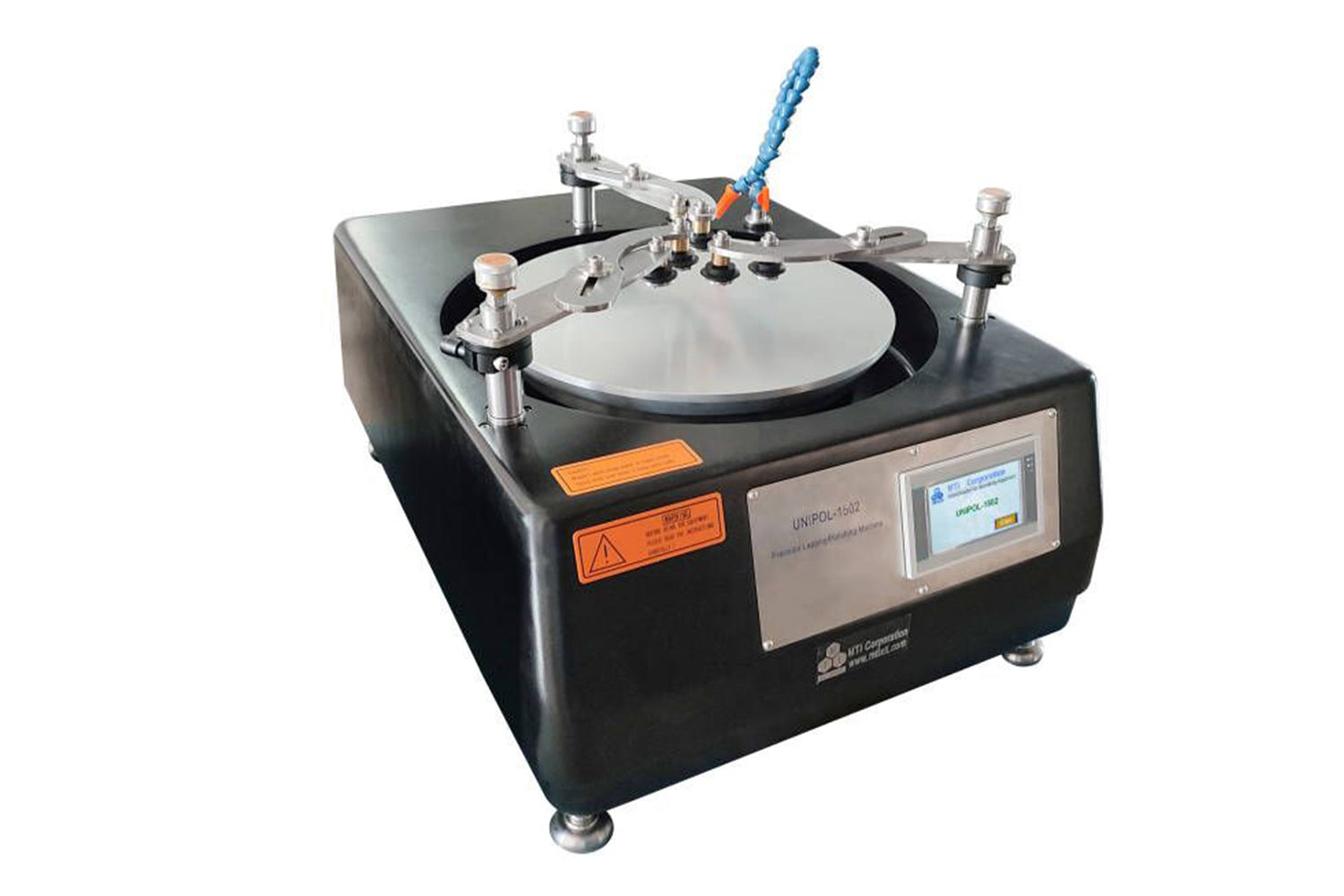

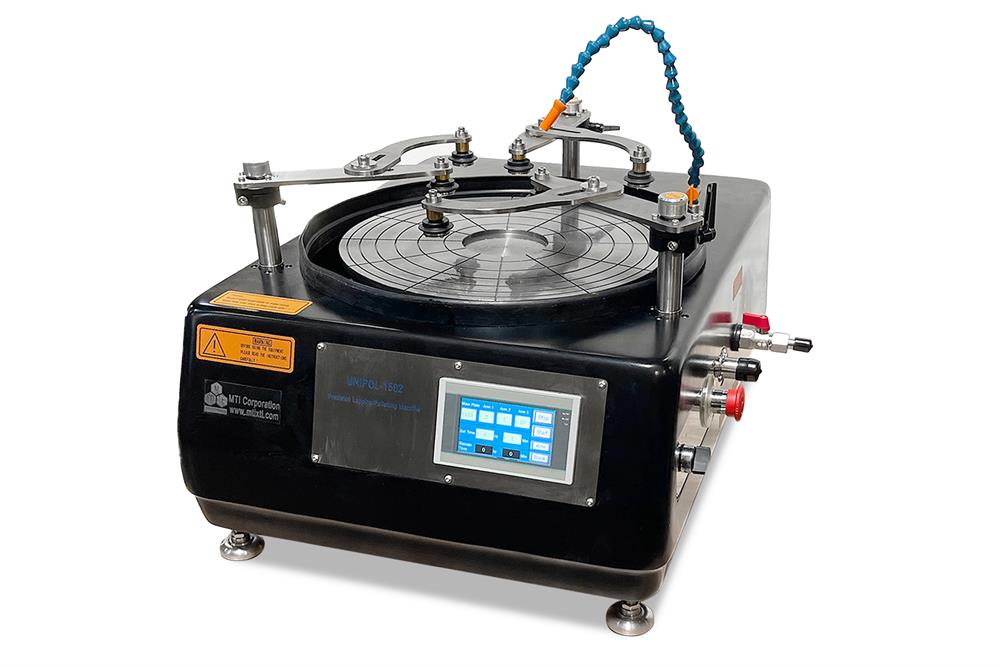

15" Precision Polishing Machine for up to one 8" or three 4" wafers - Unipol-1502

AC 110V and 208-240V (50/60Hz) are switchable for worldwide operation.

• One is made of cast iron with growing for lapping
• One is made of Auluminiu for holding polishing pads

• Three workstations with 4" sample per running
• One workstation with 6" sample per running (high-quality polishing)
• One workstation with 8" sample per running (decent quality polishing)

720mm L x 580mm W x 380mm H

• Consumables for polishing/lapping/grinding. Click Pic. 1  to see more details
• The multi-sample polishing fixture is available up to 3 x 8  pcs for 1" dia. samples per batch (Pic. 1)
• 4" Polishing Fixture With Pressure Indicator for Precision / Automatic Thinning and Polishing- EQ-PF-4-1P is available for ultra-flat surface lapping and polishing (Pic. 3 &4)
• Precision Thickness Checker with 0.001 mm Dial/Digital Indicator available at an extra cost (Click Pic.5)

Pic. 2

• CE Certified
• NRTL certification is available at the extra cost

• Automatic slurry feeder SKZD-2 is not included
• The plastic rolling container can take the volume of slurry up to 1.0 Gallon (~3.8L) for a long time polishing
• Please click the left picture to order.



•
• 580 x 720 x 380, mm (L x W x H)

• 420 lbs

• Unipol-1502 allows a sample size up to 8" with a different number of workstations involved. A total of 3 yokes are equipped.
