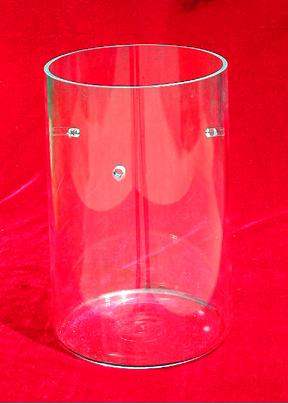

1250oC Max. GE214 Grade Quartz Tube: 8" OD x 7.5 " ID x 13.4"H One end closed - TQH200-GE

EQ-QTGE214 is an ultrahigh purity quartz tube of GE420 grade for VBF-1200X-H8 Vacuum Chamber Furnace. It can be used at operating temperatures up to 1150ºC under high vacuum

Purchase Notes: Please make sure the specification of the tube meets your need before making a purchase. We no longer accept the return of any tubes due to the fragile nature of the materials (since Nov 10, 2016). All tubes are not refundable, not exchangeable, nor covered under the warranty (Consumables). We apologize for the inconvenience. Please check the package for damages before accepting the delivery. For more information or damage upon arrival, please contact us.

SPECIFICATIONS

Material	GE420 quartz
O.D	203mm ±0.5mm (8")
I.D	192mm ±0.5mm (7.5")
Tube Length	340mm (13.39")
Max. Operating Temperature	1150 oC  under vacuum 1250ºC    at atmosphere
Application Notes	In order to get longer tube service life, Please use quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube, please click the picture below to choose one crucible boat:

Inspect your delivery:
Please check the package for damages before accepting delivery.
Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.
