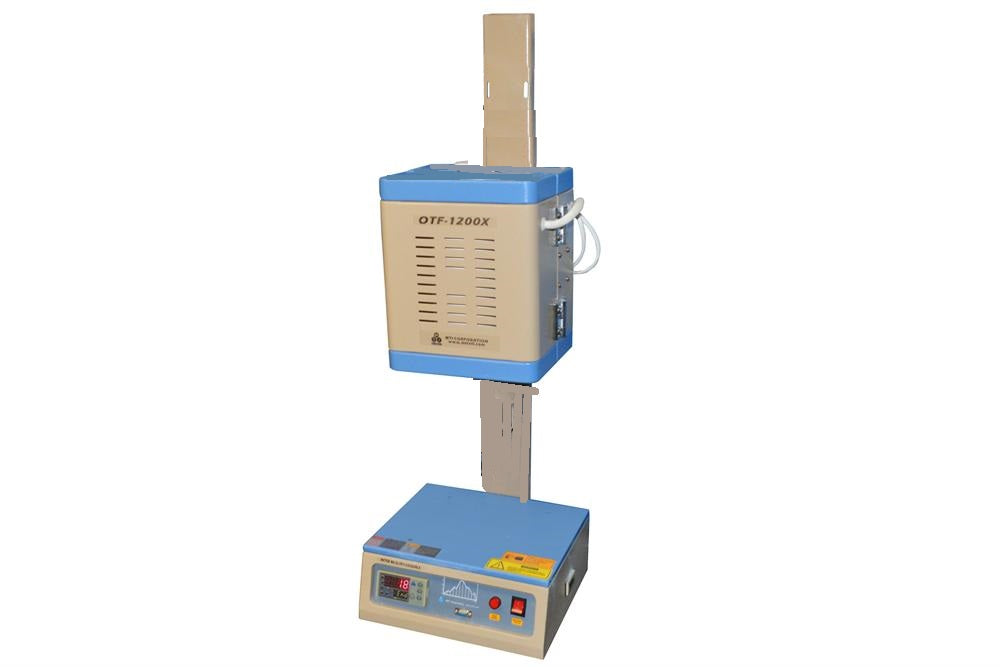

1200°C Vertical Split-able Furnace for DIY Tubular Reactor (1- 2" Dia.) w/ Temperature Controller - OTF-1200X-SVN

Furnace Structure

• Double-layer steel structure with air cooling.
• High-purity Al2O3 fibrous insulation with Max. energy saving.

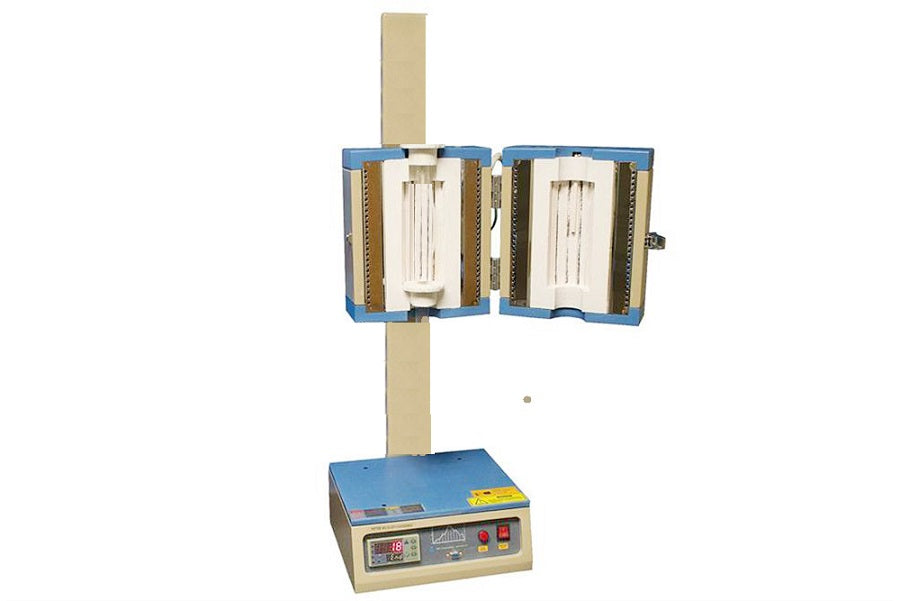

• Split cover for easy tube replacement.
• Adopts 1" or 2" O.D. processing tubes.

Power

• AC 110V Single Phase or AC 220V Single Phase can be selected in the option bar
• 1200W  ( 15A air breaker required )

Working Temperature

• Max. Temperature: 1200 °C (< 1 hr)
• Continuous working temperature: 1200 °C
• Max. Heating Rate: 20°C /min

• Heating Zone Length:                8" (200mm)
• Constant Temperature Zone:     2.3" (60mm)  (+/-1°C)
• Heating element:                         Fe-Cr-Al Alloy doped by M

Temperature Controller

• PID automatic control and auto-tune function.
• 30 programmable segments for the precise process
• Built-in protection for overheated and broken Thermal couple.
• Temperature Accuracy: +/- 1 °C
• K-type thermal couple

Advanced Temperature Controller (Optional)

• Temperature control software kit (for YUDIAN series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.

Dimensions

Shipping Package Dimensions

40"(L) x 30"(W) x 30"(H)

Shipping Weight

80 lbs

Warranty

• CE Certified
• NRTL or CSA certification (UL61010 or SPE1000) is available at the extra cost.

Operation Instructions
