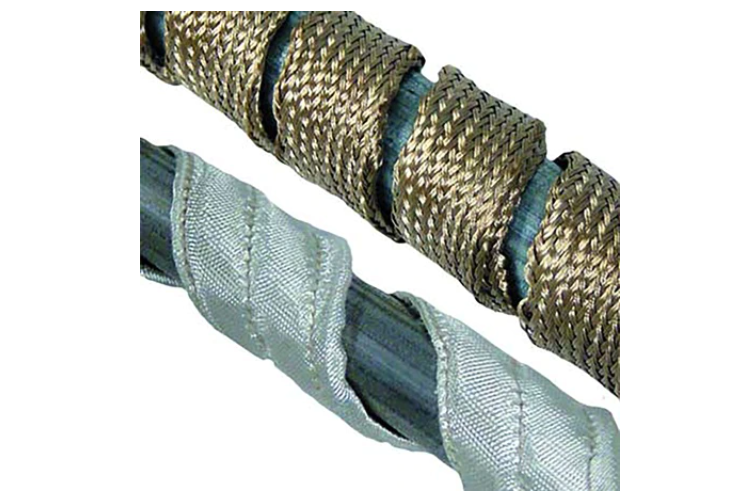

10' Heating Tape with Thermocouple, 760°C Max. for DIY - EQ-HT-TC-10

• Length:                                   10 feet (~ 3 meters)
• Width:                                     1/2 inch (12.7mm)
• Input Voltage:                         120V AC
• Max Power:                             780W
• Max. Working Temperature:    760°C (1400°F)
• Electric insulation                   Fiberglass
• Power Plug:    Type A (US) plug is included

Thermocouple

• K Thermocouple
• Diameter: 1/8 inch (3 mm)
• Length: 6 inch (152.4 mm)
• Standard Size Connector

1. Insert thermal couple between the die and the tape
2. Connect the heating tape to a temperature controller
3. Connect the thermocouple to  a temperature controller ( T/C end with right  positive and negative )
4. If you don't know how to DIY, please order the temperature controller and die together by clicking the link below to order:
5. You may order thermal insulation tape to wind the outside of the heating tape for more safe use.

•     ( Pls order die with OD = 50 mm  Insulation tape
