0- 50Kg Pressure Sensor Kit: Load cell+ + Digital Meter - EQ-LC-KIT-KG50

€891,59

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

0- 50Kg Pressure Sensor Kit: Load cell+ + Digital Meter - EQ-LC-KIT-KG50

MTI

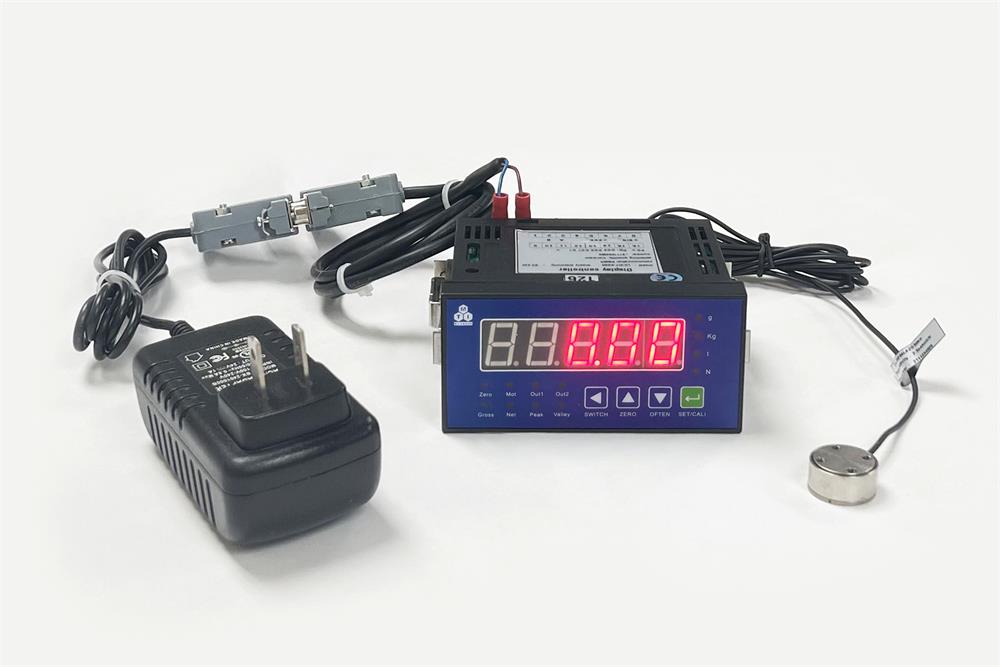

EQ-LC-KIT-KG50 is designed to measure low pressure up to 50Kg for a small jig and pressing machine. The Digital Panel Meter is capable of being an indicator or controller of the load cell with 4-digit standard LED display. The scaling capability of the meter also allows for displaying all engineering units. The wide DC current input ranges cover typical strain applications. The front panel includes several buttons to program, zero, and record the measurement.

Load Cell SPECIFICATIONS:

Power Input 100 - 240VAC power adapter is pre-installed.
Output 2 mV/V nominal
Max Loading  50 Kg  ( 500N)
Repeatability ±0.10% - 0.30  FSO
Operating Temp Range -20 to 80 °C (-65 to 250°F)
Ultimate Overload 200% of Capacity
Construction Stainless Steel
Dimension
