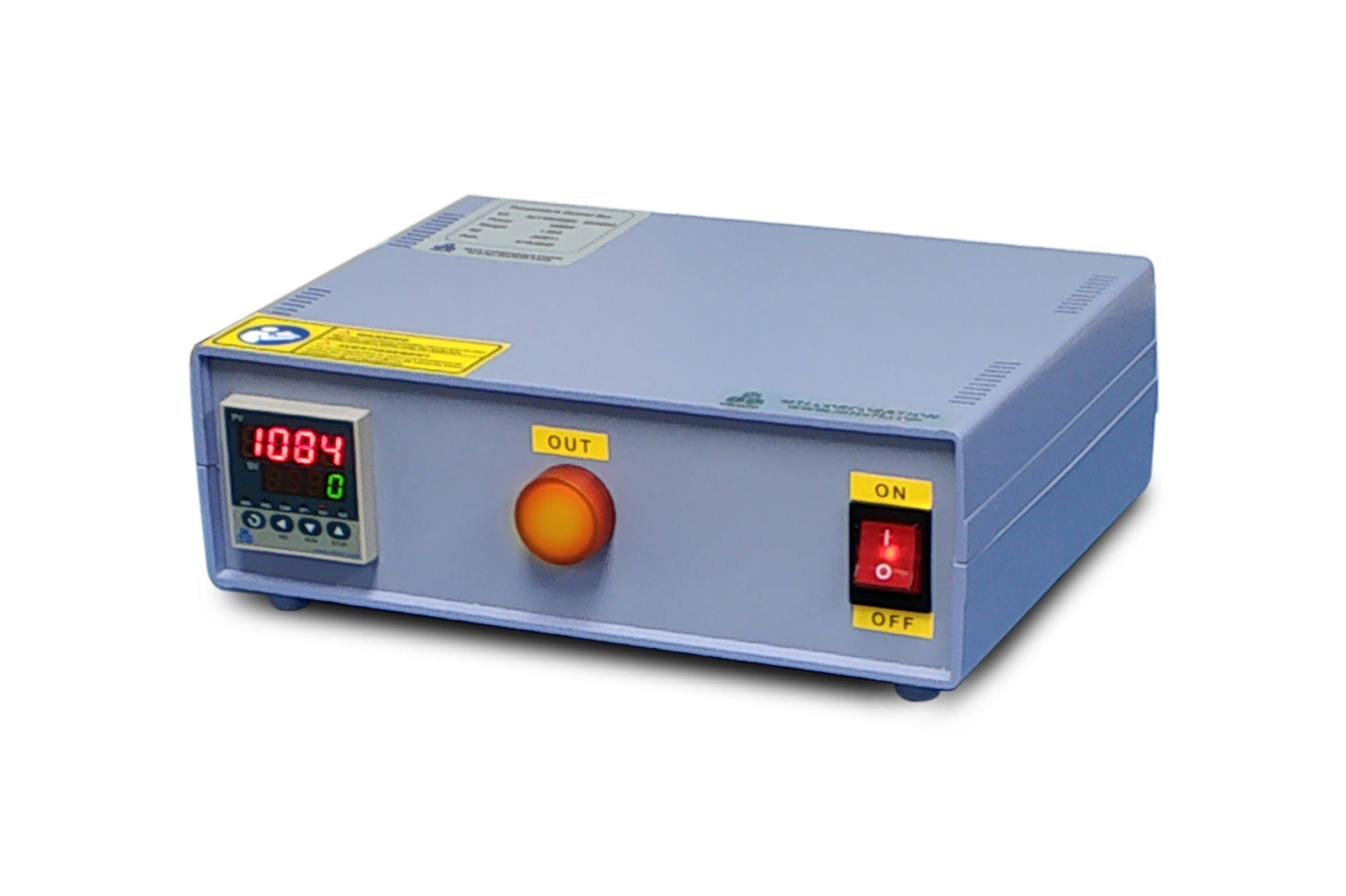

Single Point Temperature Control Unit PMWM with PID for DIY Furnace - MTC1000

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Single Point Temperature Control Unit PMWM with PID for DIY Furnace - MTC1000

MTI

  • PID temperature control unit is designed for precision control of high-temperature furnace from 500 - 1500 oC with heating elements of resistant wire or SiC.
  • Just connect the power cord and thermocouple with the unit, you can run your furnace automatically.
  • The controller uses PID via SSR power control with single segment.
  • The built-in "auto-tune" function allows you to adjust furnace temperature with minimum over-shooting.
  • Built in Protection to cut-off power for over-temperature.

Specifications:

Model  MTC1000-110 MTC1000-220
 Input & Output
 Voltage		 108 - 120 VAC, single phase, 50/60 Hz
Output 110V		 208 - 240 VAC, Single phase, 50/60 Hz
Output 220V
 Max. Power 1000 W
 Thermo Couple Accepted
  • J, K, T, E, N, B, R, S,( thermo-couple is not included)
    • J range: -310 to 1832 oF (-190 to 1000 oC)
    • K range: -328 to 2502  oF (-200 to 1372  oC)
    • T range: -328 to 752  oF (-200 to 400  oC)
    • E range: -328 to 1832  oF (-200 to 1000 oC)
    • N range: -328 to 2372  oF (-200 to 1300 oC)
    • B range: 392 to 3272  oF (200 to 1800 oC)
    • R range: 32 to 3214  oF (0 to 1768 oC)
    • S range: 32 to 3214  oF (0 to 1768 oC)
  • Please click picture below to order a thermal couple
  • Thermal Couples ( K, S, B type ) & Calibration Kit Thermal Couples (K, S, B type) & Calibration Kit
Temperature Control
  • The controller uses PID via SSR power control
  • Single segments programmable.
  • Control accuracy  +/-1.0 oC
 Overall Dimension (mm)

     260 x 190 x 90 mm  ( L x D x H)
Back View
 Weight (kg/lbs) 2 kg

Certificate		  CE recognized ( Controller alone )
 NRTL or CSA certification  is available upon request
Operation Instructions
 Note This temperature controller is designed for lab furnaces heated by resistant wire and SiC elements up to 1500oC



Standard Package for MTC1000-110
P/N   Description Quantity  Pic & Link
MTC1000-110 110V Temperature Control Unit 1
Power Cord 110V 1

Standard Package for MTC1000-220
P/N   Description Quantity  Pic & Link
MTC1000-220 220V Temperature Control Unit 1
Power Cord 220V without plug 1
