Hybrid Precision Film Coater with Both Slot Die & Doctor Blade for 30mm W x1100 mm L Coating - MSK-AFA-L1000-HDS

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Hybrid Precision Film Coater with Both Slot Die & Doctor Blade for 30mm W x1100 mm L Coating - MSK-AFA-L1000-HDS

MTI

MSK-AFA-L1000-HDS  is an economic, but precision film coating machine which can coat film with 5 microns thickness up to 1100 mm Length. One special hybrid film applicator is included which can do both slots die coating for thin film (< 10 microns) and tape casting for thick film coating (> 10 microns). It is an excellent tool to research film coating for perovskite solar cells, fuel cell proton exchange membrane, and the battery electrode.

SPECIFICATIONS
Working Power
  • 110 V or 208 - 240V AC selectable
  • 50/60Hz
  • 100W
Hybrid Coating Head

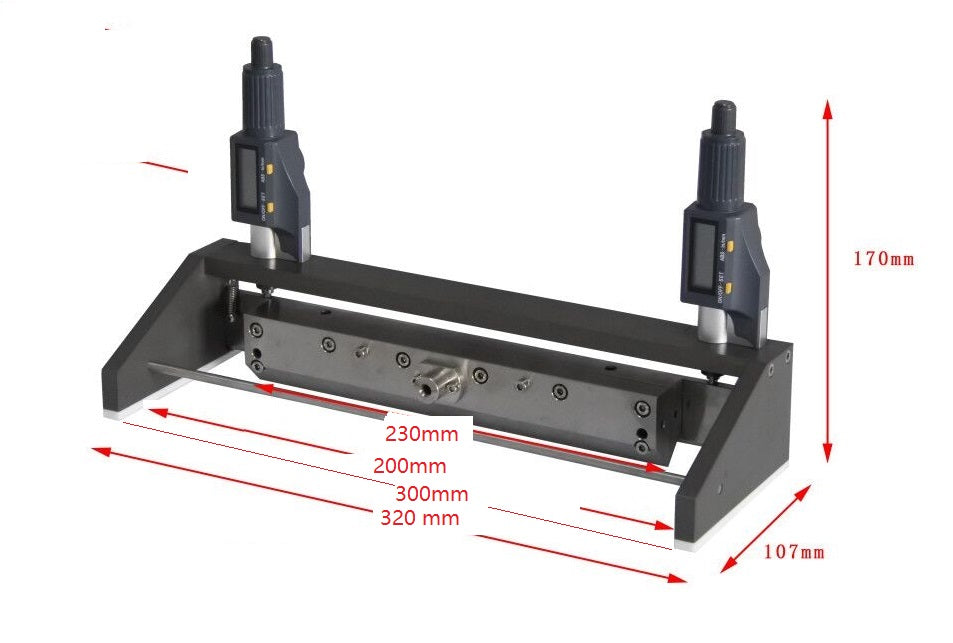

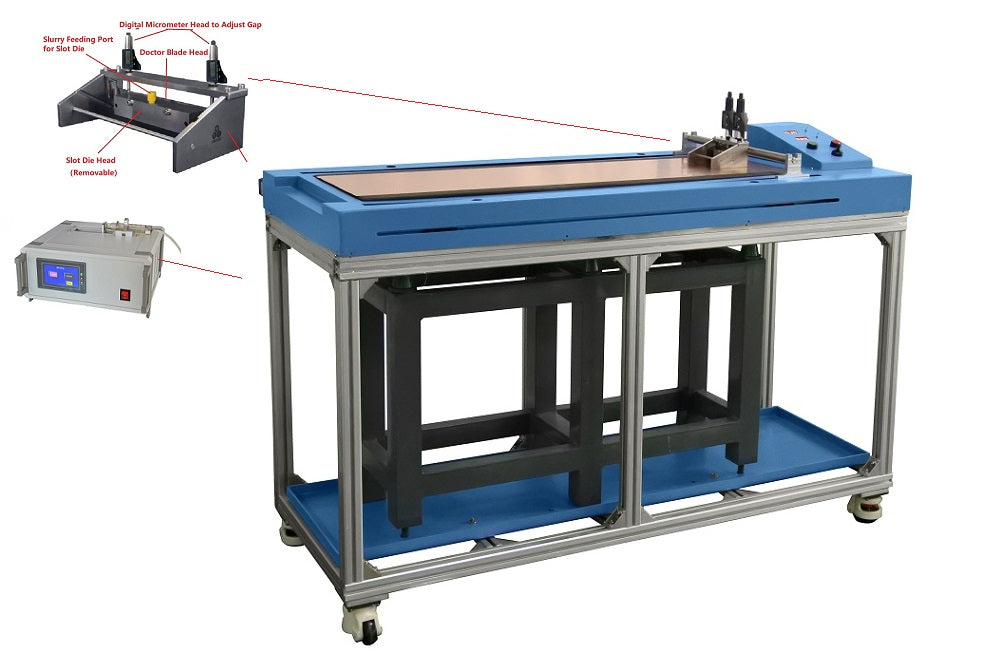

  • The film coating head consists of one fixed 300 mm width doctor blade and one 200 mm width removable slot die head ( click picture1 below to see detail). The gap between the coating blade and the substrate plate is adjustable with +/- 1-micron accuracy via dual digital micrometers. (Pic. 2)
    • Doctor blade: 300 mm width for minimum thickness of 0.010 mm film
    • Slot die: 200 mm width for minimum thickness of 0.005 mm film
    •        Pic. 1   Pic. 2   Pic. 3

Syringe Pump


  • Easy to use 4.25" LCD touch screen (no computer interface)
  • Holds syringes from 0.4 mm up to 30 mm in diameter
  • Remembers previous settings on power-up
  • Pumping rate: 0.1 - 45 mm/min
  • Travel range: 0.001 - 120 mm
  • Micro speed adjustment: 0.01 - 8 mm/min
  • High voltage resistance up to 12 kV
  • Precise reproducible flow rates
  • Infuses Only. Does not withdraw the syringe


Platform
  • The platform is made of marble
  • Width: 350 mm
  • Length: 1100 mm
  • Surface Flatness: +/-  2 microns
    Tavel Speed & Length
  • Travel Speed: 0 - 80mm/sec variable
  • Travel distance: 300 mm or 1,000 mm selectable
Coating Thickness
  • The film thickness is dependent on slutty viscosity
  • Minimum coated thickness is about 10 micron with +/- 1-micron uniformity by slot die coating at < 2500 mPa·s viscosity

Options
  • The top heating is available upon request as the picture 1 below, where the cover is installed on the top for dring film after coating at the extra cost.
    • Precision temperature control with +/- 1ºC accuracy
    • Max. temperature: 120ºC
  • In order to achieve better coating by the slot die, slurry's  Viscosity and dispersion is very important, please click picture 2 to order the Viscosity meter and dispersing machine (Pic. 3) and find the best parameter for your coating
  •  Pic. 1Pic. 2 Pic. 3
    Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost
Warranty
  • One year limited warranty with lifetime support
Operation Video
Dimension & Net Weight
Net Weight 180 kg
