Automatic Electrolyte Injection and Manual Sealing under Vacuum Glove box for Cylindrical Cells - MSK-211-VGB

• Heavy-duty Stainless steel chamber with dimension:  1120mm(L) x 740mm(W) x 900mm(H)
• Max. Positive Pressure: 810 Torr ( when using gloves)
• Max. Vacuum Level:     0.08 Torr ( when closing flanges)
• The one antechamber is built-in  ( dual antechamber is optional)
• Dimensions: 360mm(ID) x 435mm(L)
• Max. Vacuum Level: 0.05 Torr
• Vacuum flanges in the front are included
• Lighting is included at the outside chamber
• Power Extension is installed inside the glovebox
• 240 L/m Heavy Duty Double Stage Rotary Vane Vacuum Pump with Exhaust Filter is included
• Please click the picture at the left column to see detailed specifications of the glovebox

 Electrolyte Injection Station

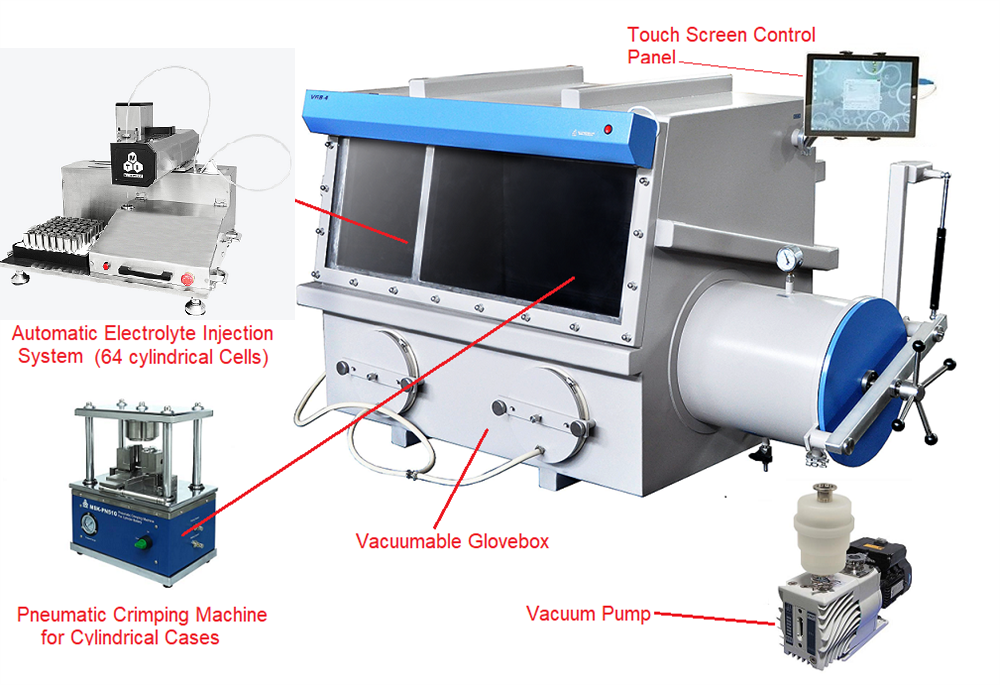

• XYZ three-axis platform for liquid injection up to 64 cylindrical cells ( 18650) per tray.
• The tray is optional for different shapes of the cells to achieve different liquid core injections. Please contact us for different customization for shape and size.
• The precision rotating plunger metering pump to achieve high-precision injection with 0.3% accuracy.
• Parameters such as vacuum level, injection speed, injection volume, and operating speed are programable via the control panel of the touch screen, which is located the outside glovebox.
• Please click the picture in the left column to see detailed specifications of the glovebox

Pneumatic Crimping Machine

• Compact and lightweight, it can be conveniently placed in a glove box through the front window.
• The sealing die is driven by a pneumatic cylinder with adjustable pressure.
• Compressed dry air or inert gases can be used ( Ar gas is preferred to keep glovebox atmosphere inert )
• The pressure gauge is built in the crimper to keep the pressure consistent.
• The standard cropping die of 18650 is included for immediate use.  If you need other dies, such as 21700, or 21650, please let us know in advance.  (We do not suggest the customer to change the die by themselves)
• Note:  MTI crimping dies only match the case supplied by MTI
• Please click the picture at the left column to see detailed specifications of the glovebox

Control Panel

• The touchscreen control panel is installed at the outside glovebox for easy operation.
• The control panel will present the program for:
• Vacuum level ( before electrolyte injection) and dwell time
• Atmosphere pressure ( when fill gas for sealing)
• The volume of electrolyte injection for each cell
• The moving speed  and distance of the X-Y platform  ( different cases with different spacing)

• Single-phase 208 - 240VAC, 50 / 60 Hz
• The glovebox:              800W
• Injection station           3000 W
• Crimping machine:      No power ( Air Compressor required )
• Total:                            >5000W power supply required

Click Picture at right to see details

• You may consider ordering a gas purification system for the glovebox to keep O2 and H2O below 1 ppm level ( click Pic. 1) , which is available at the extra cost
• You may like to order compressive gas pump together ( click Pic. 2)
• Please order cylindrical cases by clicking Pic. 3
•     Pic. 1         Pic. 2          Pic. 3

Compliance

• CE approval
• NRTL Certification (UL 1450) is available upon request at extra cost

Warranty

• One-year limited warranty with lifetime support
