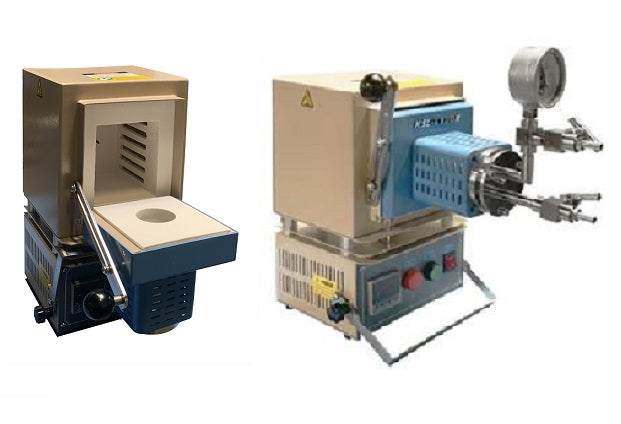

Compact Hybrid Furnace (4 x 4 x 4", 1000C), Muffle/Tube 2-In-1 - KSL1100XSH

Model

Furnace Construction



• High-purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brands

• Drop-down door for easy sample loading
• Hybrid Furnace:
• One-end closed 2" quartz tube, a tube block, and a corresponding flange are included for tube furnace application.
• A thermal block is included to work as a  muffle furnace.
• Mechanical Pressure gauge EQ-CM-GV is included for the pressure measurement
•

• High-purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brands
• Drop-down door for easy and safe sample loading
• Hybrid Furnace:
• A two-end open 1" quartz tube, a tube block, and corresponding flanges are included for the tube furnace application.
• The 1" quartz tube penetrates through both ends of the furnace
• Two thermal blocks are included to work as a standard muffle furnace.
• Mechanical Pressure gauge EQ-CM-GV is included
•

Quartz Tube

Flange

• Standard: vacuum sealing assembly with 1/4" gas inlet and outlet.  Fittings can be replaced by tube fittings or a KF25 port at an extra cost.
•

• Standard: vacuum sealing assembly with mechanical pressure gauge. Fittings may be replaced by tube fitting or KF25 port at an extra cost.
•

Chamber Size

• 110V version: 950 W (Power cord is included)
• 220V version: 1.2KW (Power cord is not included)

Operating Temperature

• 1000°C max for an hour
• 900 °C for continuous operation

Max. Heating Rate

• 30 °C /min

• PID automatic control and auto-tune function
• 30 programmable segments for precise control
• Built-in protection for the over-heating and broken thermocouple
• Large digital control panel (48 x 96 mm) for easy operation
• Temperature accuracy: +/- 1 °C
• Thermocouple:   K type

Optional


• Two 8 mm diameter barbed fittings (gas inlet and outlet) (see pic on the left) at the back of the furnace panel are available at extra cost ($99 for both connectors). Check the option box
• Note: Self-Installation is required. The open barb holes and threaded holes will be ready
• Consumables:  Heating module and thermal couple can be ordered by clicking underline

Overall Dimensions


Net Weight

• ~ 18Kg

Dimensions

• 17"(L) x16"(W) x 20"(H)

Shipping Weight

• 45 lbs

Warranty

Compliance


• CE Certified
