MTI  |  SKU: EHX-365

Economic Hot Laminating Press with Two Steel Roller up to 130oC/ 365 mm Width - EHX-365

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

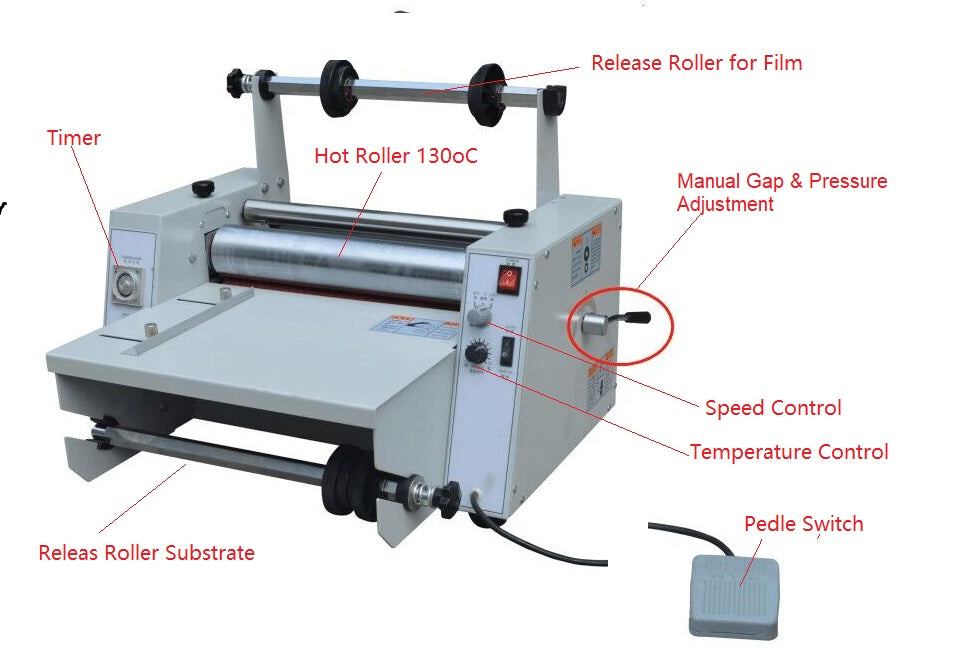

Economic Hot Laminating Press with Two Steel Roller up to 130oC/ 365 mm Width - EHX-365

MTI

EHX-365--is an economic hot laminating press up to 365 mm width and 130°C max. The gap and pressure between two SS304 rolls are adjustable manually with ~ Max. 50kg. It is a cost-effective tool for research on multilayer LCP, flexible electronic devices, and solid-state Li-Ion batteries.

SPECIFICATIONS:
Rollers
  • Two Rollers are made of SS304 steel with a 60 mm diameter
  • Rollers are heated by electric heating rods up to 130oC with two digital tem[erature controllers
Max. Laminating Width
  • 365 mm
Max. Laminating Speed
  • 1- 5 meters/min
Max. Pressure
  • Pressure is adjusted by a spring applied to the top roller with a digital force sensor
  • Max. Force: ~ 50 kg
 Power
  •  208 -240V, 50/60Hz, single phase, 2000W
Compliance
  • NRTL or CSA certification is available upon request at the extra cost
