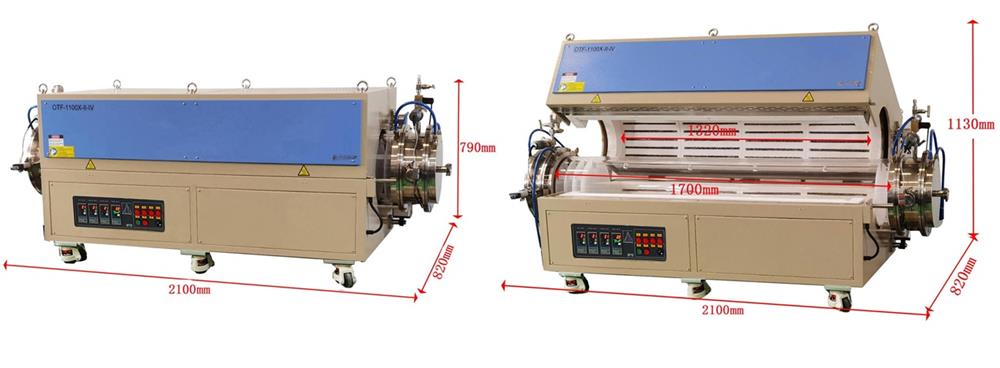

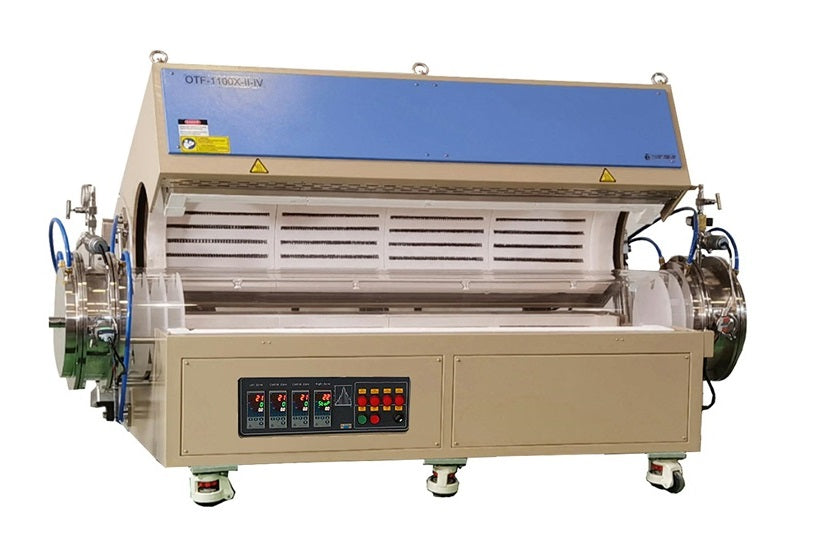

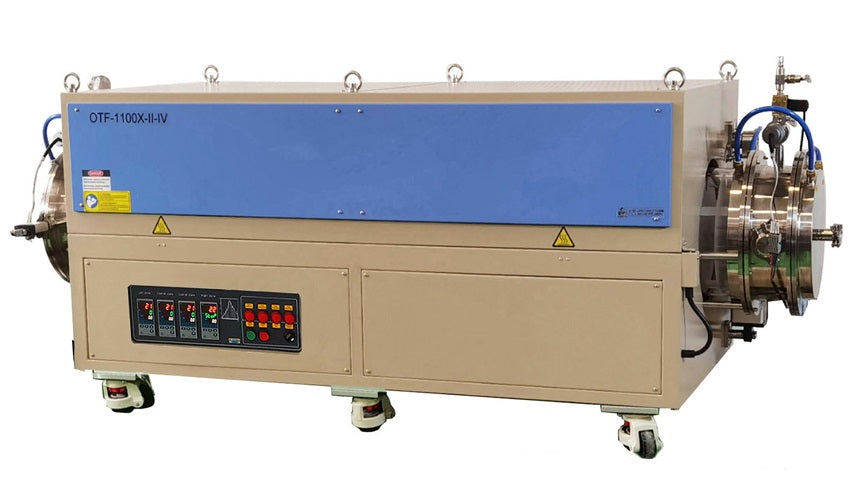

OTF-1200X-IV-X is a large split-able four-zone tube furnace with 47" L heating zone and optional *", 10" and 145 ID quartz tubes up to 1200°C. The multiple zones tube furnace is enabled to create a 36 "L uniform temperature zone within +/- 2ºC. The quartz tube and vacuum sealing flanges with a pressure gauge & a ball valve are included for immediate use. Three programmable digital temperature controllers are installed with a K-type thermal couple with an accuracy of +/- 1 °C. It is an excellent furnace for annealing, diffusing, and sintering samples under various gas atmospheres.

SPECIFICATIONS:
Furnace Structure
  • Double-layer steel case with two cooling fans, which ensure low surface temperature;
  • Energy-saving high-purity fibrous alumina insulation;

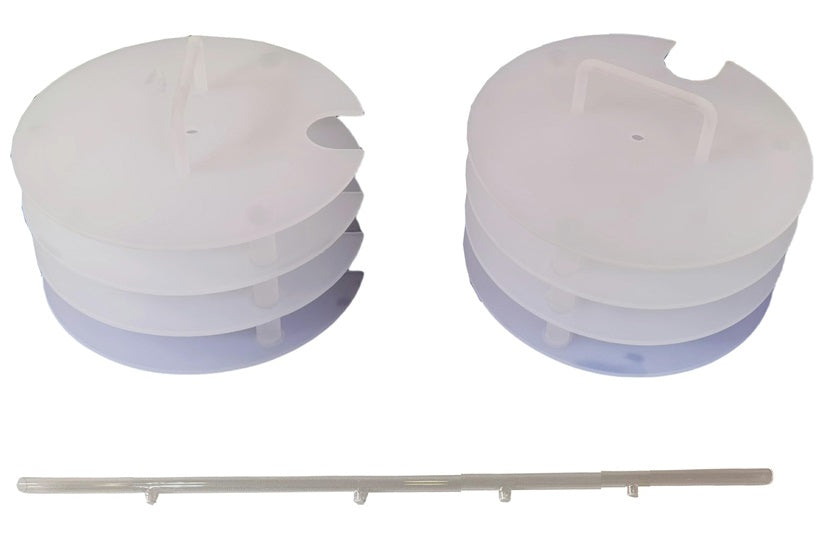

  • Buffer types of thermal blocks made of quartz discs are included for better cleanness.
Power
  • AC 208-240V Three Phase, 50/60 Hz (50A breaker required)
  • Power consumption: 24 KW Max.
    The power cord is included without a plug
Heating Zone Length
  • 4 heating zones: 1200mm (47") in total
  • 300mm (11.8") for each zone
Quartz Tube & Sealed flange
  • Quartz Tube is optional from 8" ID to 14,5" IN as below
    1. 8.5"OD x 8.1" x 60"L (216 OD x 206 IDx 1524L mm)
    2. 11"OD x 10.6"ID x 51"L ?279 OD x 269 IDx 1295Lmm)
    3. 15"OD x 14.6" x 73"L (381 OD x 371 IDx 1860L mm)
  • One pair of SS 304 vacuum flange with double high-temperature silicone O-ring and water cooling jacket is Included
  • 2 needle valves are installed with a flange
  • One Vacuum/ pressure gauge is installed on one side flange
  • The vacuum level is 10-2 torr by the mechanical vacuum pump and 10-5 torr by the turbopump.
  • Optional: Please click the picture below to order: a vacuum pump (Pic. 1 -2 ), and a digital vacuum gauge (pic. 3) as well as a mass flow controller or gas mixing and delivery system (Pic.5)
Pic. 1  Pic.2 Pic.3 Pic.4 Pic.5

Heating Temperature
  • Max. Heating Temperature: 1200°C
  • Continuous Heating Temperature: 1100°C
  • < 1000°C under vacuum
  • Max. Heating Rate: 10°C/min
Temperature Controller
  • 3 digital temperature controllers certified by MET and CE Certified
  • PID automatic control with 30 programmable segments for control of heating & cooling rate and dwell time.
  • Built-in overheating & broken thermocouple protection.
  • Over-temperature protection and alarm allow for operation without attendant(s).
  • +/- 1 ºC temperature accuracy.
  • RS485 Communications Port.
Optional:
  • A PC may operate the furnace by installing a control module. Please order an MTS-02 control module at an extra cost.
  • If you order the PC control module together with the furnace, we will install and test it before shipping. We recommend you order a computer laptop from us to avoid software installation problems. For more information please click here.


Eurotherm Temperature Controllers (optional upgrade)
  • Eurotherm 3000 controller is available upon request
  • Temperature Accuracy: ± 0.1ºC
  • Recipes: Using a PC tool recipes can be created that can be used to change the operating parameters of the 3000 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set.
Laptop, software & WIFI Control(Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
  • Labview Temperature Control System (EQ-MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record, and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available at extra cost.
