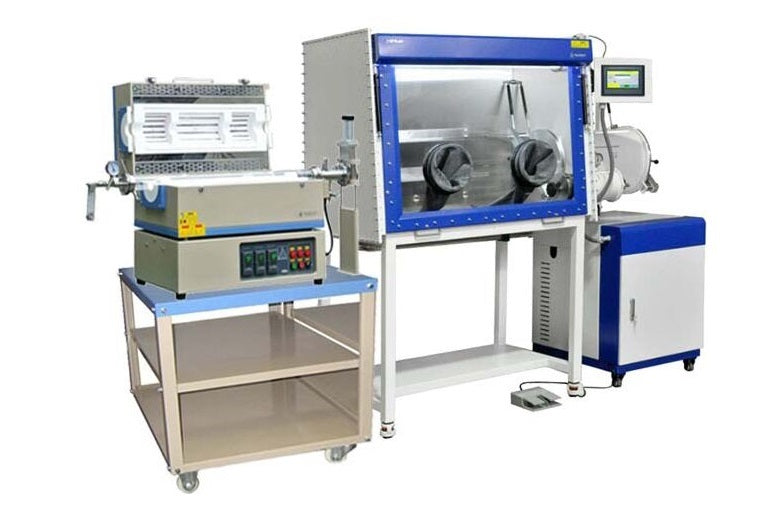

1200°C Three Zones Tube Furnaces Connected to Glove-box with Purification System - OTF-1200X-III-GB

• Chamber dimension: 1200 mm L x 740 mm W x 900 mm H, made of stainless steel.
• Hinged type front door for loading devices and sample easily
•  Automic purging function for quickly removing O2 and H2O  before recirculating purification
• Automatic regeneration function is built-in in the control panel
• High-quality purification system ensures O2 and H2O below 1 PPM
• Two Antechambers for large and small samples delivery
• One 80mm Dia. the air-tight flange is installed on the left side of the glovebox to connect with the tube furnace.
• Please click the picture at the left-column for detailed specifications of the glovebox

• Three heating zones tube furnace with independent temperature control
• Heating zone length :  ( 6"+12"+6" ) with Max. working temperature of 1200ºC
• Three Eurotherm Temp. controllers with +/- 0.1ºC accuracy.
• Quartz tube with the dimension of 80 O.D x 72 I.D x 1219 L (mm)
• The air-tight flanges with the valve and vacuum gauge are included
• For detailed specifications of the furnace, please click the picture at the left column

• Single-phase 208 - 240VAC, 50 / 60 Hz
• The glovebox:   2500 W (including a vacuum pump)
• Furnace:           5000 W

• Furnace:   800mm(L) x435mm(W) x 670 mm(H)
• Glovebox:  2000 mm L x 1000 mm W x 1880 mm H

Net Weight of Coater

• Furnace:     ~75Kg
• Glovebox:    ~360 Kg

Compliance

• CE approval
• NRTL Certification (UL 1450) is available upon request at extra cost

Warranty

• One year limited warranty with lifetime support
