Thermocouple: S type (Pt-Rh to Pt) 9.5" Length with ceramic sheath - EQ-TC-S-KSL-14

MTI

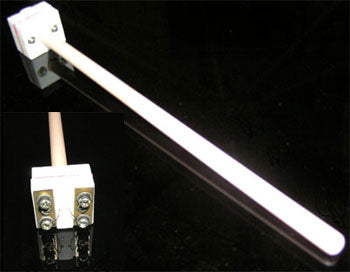

Thermocouple: S type (Pt-Rh to Pt) 9.5" Length with ceramic sheath

Feature
  •  S type thermocouple for applications at high temperature up to 1600ºC
  • Suitable for 1300 - 1600ºC series tube furnaces, like KSL-1400X-A4
  • Ceramic end holder with screws to connect thermocouple to a temperature controller

Specifications:

  • Length:                         240 mm (9.5")
  • Diameter of sheath:        8 mm ,  high purity Alumina
  • Positive Material:           Pt-10%Rh
  • Negative Material:          Pt
  • Lowest Temperature:      50 ºC
  • Highest Temperature:     1600 ºC
  • Minimum Std. Error:       +/-1.4 ºC
