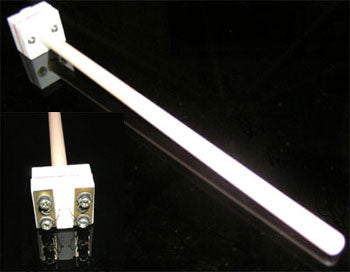

Thermocouple: S type (Pt-Rh to Pt) 8" Length with ceramic sheath - EQ-TC-S-KSL-15

Features:

• S type thermocouple for applications at high temperature up to 1600 ^oC
• Suitable for 1300 - 1600^oC series tube furnaces, like KSL-1400X-A4
• Ceramic end holder with screws to connect thermocouple to a temperature controller

Specifications: Length:                         200 mm (8") Diameter of sheath:        8 mm ,  high purity Alumina  Positive Material:           Pt-10%Rh Negative Material:          Pt Lowest Temperature:      50 oC Highest Temperature:     1600  oC Minimum Std. Error:       +/-1.4  oC

a

Features:

• S type thermocouple for applications at high temperature up to 1600 ^oC
• Suitable for 1300 - 1600^oC series tube furnaces, like KSL-1400X-A4
• Ceramic end holder with screws to connect thermocouple to a temperature controller

Specifications: Length:                         200 mm (8") Diameter of sheath:        8 mm ,  high purity Alumina  Positive Material:           Pt-10%Rh Negative Material:          Pt Lowest Temperature:      50 oC Highest Temperature:     1600  oC Minimum Std. Error:       +/-1.4  oC
