MTI | SKU: FmCu400Ta50SO300onSiBa101D05

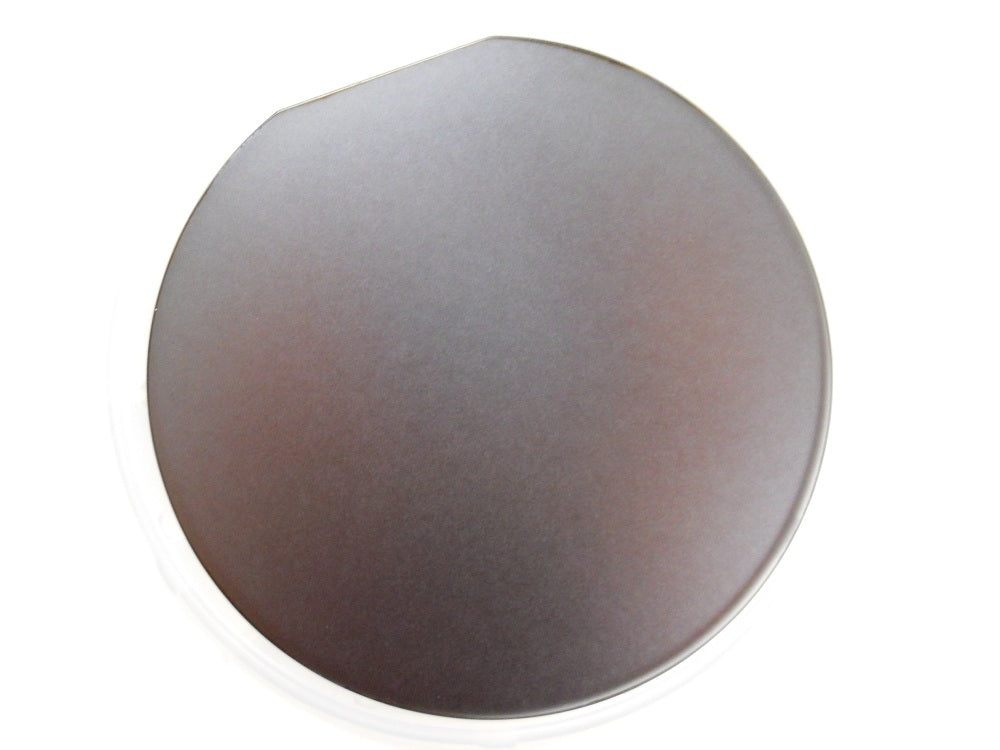

Cu Film on Ta/SiO2/ 4"Silicon Wafer, Cu=400 nm Ta=50nm SiO2=300nm, Si(100) P-type B-doped 4"x0.525mm, 1sp

Name: Cu Film on Ta/SiO2/ 4"Silicon Wafer, Cu=400 nm Ta=50nm SiO2=300nm, Si(100) P-type B-doped 4"x0.525mm, 1sp
Brand: MTI
SKU: FmCu400Ta50SO300onSiBa101D05
Price: 457.70 EUR
Availability: InStock

€457,70

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Cu Film on Ta/SiO2/ 4"Silicon Wafer, Cu=400 nm Ta=50nm SiO2=300nm, Si(100) P-type B-doped 4"x0.525mm, 1sp

MTI

Specifications:

Cu <111> coated Si Wafer (4 inch size)
Thickness of highly oriented polycrystalline Cu <111> film: 400 nm
Thickness of Ta diffusion barrier: 50 nm
4 inch dia x0.525 mm thickness Si wafer (Prime Grade) with thermal oxide: 300 nm thk
P type, B doped, <100> orientation, SSP
Resistivities: 1-20 ohm-cm
Surface Roughness: as grown , N/A
Package: One 1000 class clean room with 100 class plastic bag
